2014 Ural Gear Up Review
2014 Ural Gear Up on Totalmotorcycle.com
tough as a Russian AK-47…
The 2WD 2014 Ural Gear-Up’s origins trace back to the military past of the Ural motorcycle family. The 2014 Ural Gear-Up combination is as tough as a Russian AK-47!
Ural 2014 – Rethink What You Thought You Knew About Ural
Ural motorcycles gained popularity and a loyal following among motorcycle enthusiasts around the world. Ural riders appreciate the bikes’ on- and off-road capabilities, ease of maintenance and certainly love the bikes’ classic appearance and feel. Our company is known for listening closely to customer feedback, and as such Ural has implemented a large number of changes and upgrades over the years.
We at Ural felt that the concept of a complete factory produced sidecar motorcycle has even bigger potential than what our previous models were able to deliver. So we began working on this project two years ago. The idea was to introduce a number of more advanced technical and functional features, while still maintaining Ural’s classic look, ruggedness and unpretentious character.
The four main areas we focused on were:
•Overall fit and finish
KEY DIFFERENCES AT A GLANCE (FOR 2WD models)
What It Was
Prior to 2014 all models of Ural motorcycles had been manufactured with carburetors. Carburetion allowed the user to make adjustments and accommodate different riding styles when necessary. While this is considered to be an advantage by some motorcycle enthusiasts, the benefits of EFI system are undeniable. Even though Ural could have continued with carburetion for a few more years, we decided it’s time to switch to EFI if we are to grow the brand and expand our customer base.
What It Will Be
2014 Urals feature the new standalone fuel injection system. This system has been developed specifically for Ural by ElectroJet, Inc., a Michigan-based engineering company, using components by Bosch and Delphi.
It’s a closed loop throttle body injection system utilizing individual ECU’s for each of the cylinders. This system precisely manages fuel delivery and ignition timing while simultaneously allowing the cylinders to communicate with each other for better idling and balance.
The most unique feature of our system is the individual ECU’s integrated with the throttle bodies. It’s a compact and redundant system which allows the motorcycle to continue running with just one out of two ECU’s operational. Our ECU also incorporates a PDS (pressure differential sensor) for more accurate and smooth fuel delivery, eliminating the need for additional TPS (throttle position sensor). The throttle bodies were specifically designed in a way to maximize performance while minimizing modification to existing engine components.
EFI is not the only piece of the puzzle. We completed the package with an all new air box and an improved cam profile.
The new airbox is almost two times larger in volume. This provides less restrictive airflow and better balance. The airbox inlet has been relocated to make the system more weather resistant and easier to service.
The profile of the camshaft was revised for shorter duration to increase the low to mid- rpm torque.
What Is Does
The three main benefits of EFI are obvious: it is more user friendly, provides better fuel economy and reduces emissions.
While the deployment of EFI and redesign of other engine components increased the maximum horsepower of our 750 engine, the real story is torque.
For a motorcycle with the sidecar that weighs over 700 lbs., you need a lot of torque to overcome the moment of inertia. And we achieved just that. The engine now produces 42 ft-lbs of torque at 4300rpm compared to previous 38 ft-lbs of torque at 4600 rpm – that’s a 15% increase! What’s even more impressive is that 90% of max torque is achieved below 2300 rpms – and that puts the power where you need it.
What It Comes With
The engine now comes with redesigned front cover integrating a standard spin-on oil filter.
A new wire harness incorporates all new requirements for EFI utilizing high quality weather tight connectors.
The dashboard was redesigned to include fuel level warning and engine management indicator lamps.
What It Was
Since 2003 Ural motorcycles have utilized Brembo hydraulic disc brakes on the front wheel, and drum brakes for both the rear and sidecar wheels. The drum brakes required the rider to apply more force to the brake pedal. Also this configuration required more frequent maintenance and adjustment.
What It Will Be
Beginning in 2014 Urals will feature disc brakes on all three wheels.

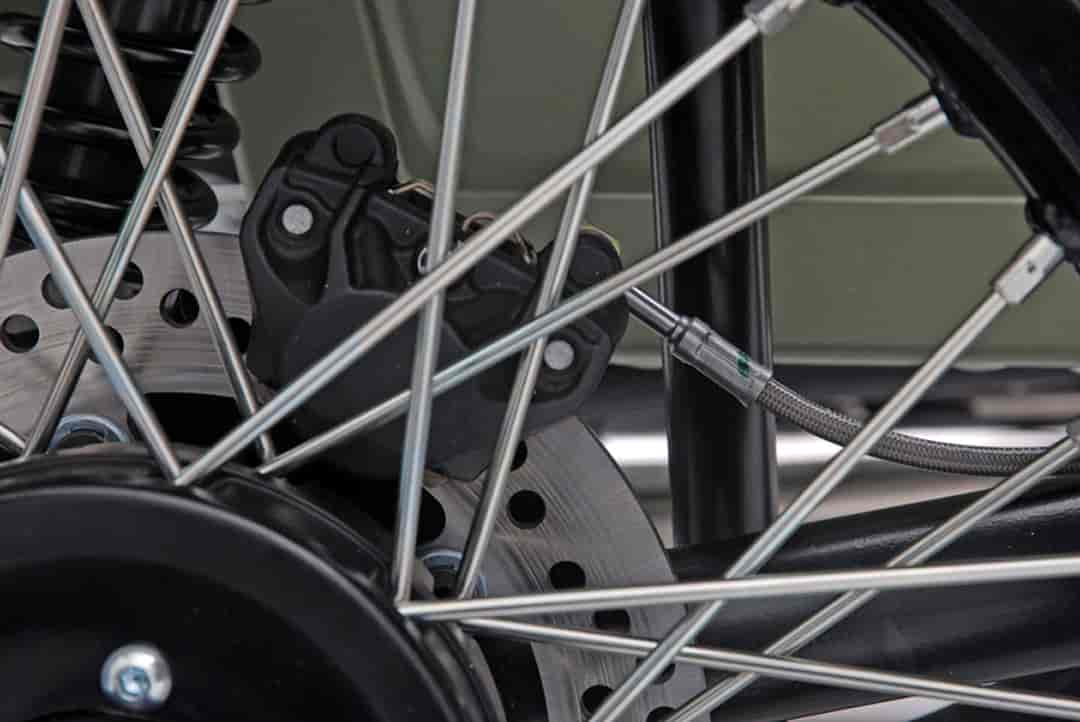

The rear wheel utilizes a big bore integrated floating caliper by HB (Hayes Brakes) and a 256 mm solid NG rotor. The caliper also incorporates the mechanical parking brake feature.
The sidecar wheel is equipped with a two-piston Brembo caliper and a 245 mm NG floating rotor.
Both rear calipers are operated by their own Brembo master cylinders.
What it Does
The new system provides dramatically increased stopping power while requiring less rider effort. Having three individual braking systems provides for the highest level of redundancy and the ability to precisely tune the entire system.
What it Comes With
During the development of the rear disc brakes we completely redesigned all wheel hubs. They now utilize standard sealed bearings with additional protective dust seals.
The rear hubs no longer utilize cast-in drive splines. They are now equipped with replaceable hardened bolt-on spline flanges. The rear wheel hubs will no longer need to be replaced due to worn drive splines.
The parking brake actuation lever was redesigned and conveniently located to simplify rider operation.
The introduction of disc brakes allowed us to develop a new final drive housing, which is lighter and universal across the entire model line.
The front brake reaction link on leading link forks is now made by FRAP (Italy) and utilizes higher quality ball joints of increased strength.
What it Was
The current Urals utilize a mechanical friction type steering damper. This simple design, while adjustable, doesn’t provide consistent handling under different riding situations. Thus the motorcycle requires constant rider input.
What it Will Be
The new system incorporates an 18-position adjustable hydraulic damper. This damper specifications were carefully selected for use on our sidecar motorcycles and confirmed after extensive on- and off- road testing.
What it Does
Riding the bike, equipped with new damper, requires less rider input while feeling more “planted” and connected to the road surface. As an added benefit, the hydraulic damper reduces the amount of sidecar specific yaw (pull to the right or left when accelerating or decelerating). For newbies to sidecars, it eases the transition from two wheels to three wheels.
What it Comes With
In conjunction with the development of the steering damper we also incorporated newly designed upper and lower triple clamps (bridges). These bridges are now made from forged aluminum alloy which is both stronger and lighter. Additionally the upper clamp incorporates handlebar mounts. Fork legs are now secured with pinch bolts in place of the original factory tapered upper mount.
In addition to all the performance improvement the motorcycle has undergone substantial makeover.
The classic look of the Ural has been preserved but well refined. Some of the improvements include new kneepads and badges on the gas tank, improved preformed hoses for fuel lines, breather and reservoirs.
The new dashboard with modern indicator lamps is more aesthetically pleasing and at the same time better follows the contour of the headlight and the upper triple clamp.
The new front engine cover is slimmer and cleaner in appearance and incorporates the IMZ logo.
Some other small details also add to the overall appearance.

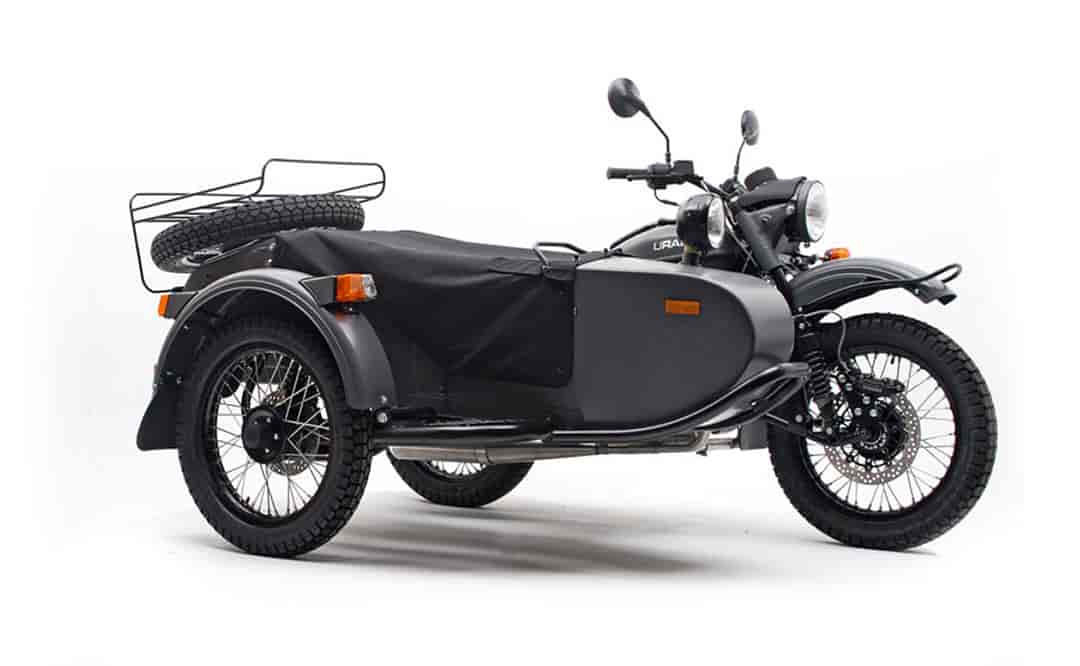

Ural Gear Up Asphalt Gray
Gear Up- Asphalt, MSRP $15,999*
Gear Up – Sage Green, MSRP $15,999*
Gear Up – Battleship Blue, MSRP $15,999*
Patrol – Red/White, MSRP $15,599* (Also comes in Black/Silver combination)
Patrol – Blue, MSRP $15,399*
Ural T – Flat Black (Also comes in Red), MSRP $12,399
2014 Ural Gear Up Totalmotorcycle.com Key Features
Ural model year 2014
Attention: The 2014 Ural revolution is spreading through Europe mercilessly:
Ural is getting rid of the drum brakes, the carburettors and a few other technical relics from the 1950’s. Watch out, Ural is beaming itself into the present time!
From April 2014 the Ural factory will deliver the sidecars with the following innovations.
Electronic fuel injection instead of carburettors
Sharper camshafts for a better torque
External oil filter Hydraulic steering damper
Disc brakes on all 3 wheels
2014 Ural Gear Up Totalmotorcycle.com Features and Benefits
The 2014 Gear-Up’s origins trace back to the military past of the Ural motorcycle family.
Despite its clearly military upbringing, the Gear-Up is equally fit for more peaceful missions, such as fishing or hunting trips. If outdoor adventures are not your forte, you can still amaze your friends with the motorcycle’s ability to blaze over outdoor obstacles or urban challenges.
The 2014 Ural Gear-Up is available in Asphalt Gray, Sage Green, and Battleship Blue
2014 Ural Gear Up – Totalmotorcycle.com International Specifications/Technical Details
US MSRP Price: $15,999 USD
Canada MSRP Price: $15,999 CDN
UK/European MSRP Price: £ See dealer for pricing in GBP / EUR (On The Road).
Engine and transmission
Displacement, cc: 749
Engine type: OHV air cooled 2 cylinder 4 stroke “boxer” (flat twin)
Valve per cylinder: 2
Bore and stroke (mm x mm): 78 x 78
Max output (hp): 41 @ 5500 rpm
Max torque (ft-lbs): 42 @ 4300 rpm
Fuel system: Throttle body EFI
Starting: Electric & Kickstart
Clutch Double-disc dry
Transmission type: Manual
Speeds: 4 forward 1 reverse
Primary drive (rear wheel): Driveshaft
Final drive ratio: 4.62
Engagable sidecar wheel drive: Yes, driveshaft
Overall length, inch.: 98.8
Overall heights, inch.: 54.3
Overall width, inch.: 63.6
Seat height, (unladen), inch.: 32.0
Ground clearance (unladen),inch.: 6.8
Dry weight, lbs: 730
Front suspension: IMZ leading link fork
Rear suspension: Double sided swing-arm with two Sachs hydraulic spring shock absorbers, 5x adjustable
Sidecar suspension: Single sided swing-arm with Sachs hydraulic spring shock absorber, 5x adjustable
Wheels: 2.5X19 Aluminum rims with steel spokes
Tires: Duro HF-308, 4.0Ã—19?
Front brake: 4-piston fixed Brembo caliper with 295mm floating NG rotor
Rear brake: HB big bore single piston integrated floating caliper with 256mm fixed NG rotor
Sidecar brake: 2-piston fixed Brembo caliper with 245mm floating NG rotor
Fuel grade: 91 Octane, unleaded
Fuel tank capacity, gallons: 5.0
Reserve, gallons: app. 1
Estimated fuel economy, mpg: 31-37
Estimated range, miles: 155-185
Recommended max cruising speed, mph: 70
Max permissible weight, lbs:1325
Trunk volume, cubic ft.: 2.9
Alternator: Denso, 55 Amp, 770 Wt
Battery: FAYTX20HL (12V, 20A)
Headlight: H6024 (65/35)
Spark plugs: NGK BPR7HS
2-years parts and labor unlimited millage.
* MSRP excludes tax, license, registration, delivery, set-up, and dealer-installed options. Dealer prices may vary.
Specifications, features and prices to change by manufacturer without notice. All information correct as of posted date.
