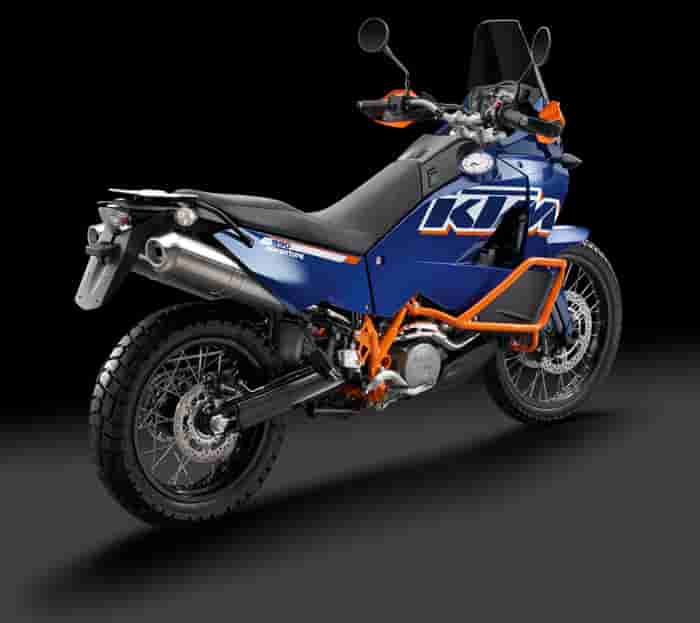

2012 KTM 990 Adventure R

2012 KTM 990 Adventure R

2012 KTM 990 Adventure R

2012 KTM 990 Adventure R

– 2012 KTM 990 Adventure R Review

2012 KTM 990 Adventure R

THE NATURE OF SUPERIORITY

Easily recognized by its orange powder coated frame, the 990 Adventure R has been one of the major highlights of the KTM line-up as of MY2009. Its LC8 V2, as powerful as it is compact, delivers a whopping 115 PS. Welded from chrome-molybdenum steel sections, the extremely rigid chassis is equipped with high quality, fully adjustable and carefully tuned suspension components “made by WP in Austria“. Numerous practical solutions like the lockable compartment between the tanks, the immobilizer and the hazard
warning lights make clear that even the representative of the sporty KTM “R” fraction is at heart a true member of the Adventure family. The low weight as well as a design that maximises ruggedness and reliability manage to convince even the most demanding longdistance riders. In MY2011, a slightly lowered seat and suspension, compounded by an altered set-up, make for a lower center of gravity – perfect for a sensational ride on any kind of road and beyond.









2012 KTM 990 Adventure R Features and Benefits

– Powerful LC8 4-stroke V-Twin, electronic fuel injection, balancer shaft, hydraulic multi-disc wet clutch, 6-speed gearbox

– Max. output 85 kW/115 PS, max torque 100 Nm, emissions: Euro 3

– Dual tube exhaust system with catalytic converter

– Trellis frame, load-bearing engine

– Fully adjustable WP suspension front and rear

– Integrated multi-functional cockpit

– Lockable storage compartment between the tanks

– Immobilizer and hazard warning lights

– Two-colour, straight-contour seat

– Striking sports paintwork, elaborate KTM R graphics, frame powder coated orange

ENGINE 2-CYLINDER, 4-STROKE ENGINE. V 75° · DISPLACEMENT 999 CC
STARTER ELECTRIC STARTER · TRANSMISSION 6 GEARS · TANK CAPACITY APPROX. 19.5L
WEIGHT (READY TO RACE) APPROX. 207 KG (WITHOUT FUEL)

---



2012 KTM 990 Adventure R – International Specifications/Technical Details
MSRP Price: See KTM dealer for pricing.

ENGINE Displacement Bore/stroke Power Torque Compression ratio Starter/battery Transmission Fuel system Control Lubrication Engine oil Primary drive Final drive Cooling Clutch Engine management/ignition   CHASSIS Frame Subframe Handlebar Front suspension Rear suspension Suspension travel front/rear Font brake Rear brake ABS Wheels front/rear Tires front/rear Chain Silencer Steering head angle Trail Wheel base Ground clearance Seat height Tank capacity Weight (ready to race)

2-cylinder, 4-stroke, V 75° 999 cc, 101/62.4 mm 85 kW (115 hp) @ 8750 rpm 100 Nm @ 6750 rpm 11.5:1 Electric starter/12V 11.2Ah 6 gears Keihin Electronic fuel injection 4 V/DOHC Pressure lubrication Motorex, SAE 10W-50 35:67 16:42 Liquid cooling Wet multi-disc clutch, hydraulically operated Keihin EMS     Chromium-Molybdenum trellis frame, powder-coated Aluminium Aluminium, tapered, Ø 28/22 mm WP-USD Ø 48 mm WP-PDS shock absorber with hydraulic spring pre-load 248/248 mm 2 x Brembo two piston, floating caliper, floating brake disc Ø 300mm Brembo two piston, floating caliper, floating brake disc Ø 240 mm – 2.15 x 21”; 4.25 x 18” 90/90-21”; 150/70 R 18″ X-Ring 5/8 x 5/16″ Twin stainless steel silencer with regulated catalytic converter 63.4° 119 mm 1,570 ± 10 mm 296 mm 895 mm approx. 19.5 litres/4 litres reserve approx. 207 kg (without fuel)





---



2012 KTM 990 Adventure R – American Specifications/Technical Details
US MSRP Price: See KTM dealer for pricing and availability

To be annouced. See International Specifications.



---



2012 KTM 990 Adventure R – Canada Specifications/Technical Details
Canadian MSRP Price: See KTM dealer for pricing and availability

To be annouced. See International Specifications.
