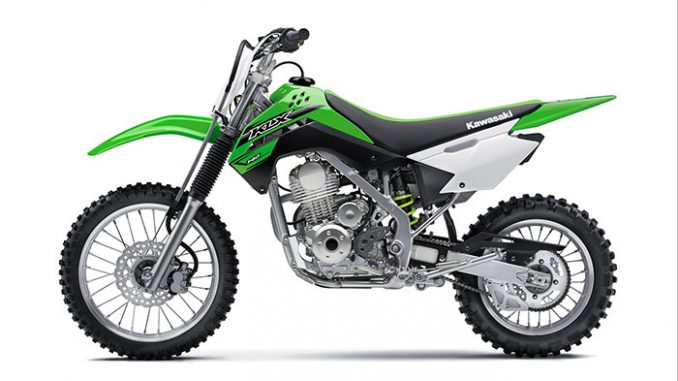

2016 Kawasaki KLX140 Review

2016 Kawasaki KLX140 on www.Totalmotorcycle.com

THE RIGHT SIZE FOR FUN…

Off-road riders and mini-moto enthusiasts don’t have to settle for simple one-size machines with limited performance and cramped ergonomics. Kawasaki’s KLX140 has opened the door for a wider variety of riders in the small displacement off-road arena.

The KLX®140—as well as the slightly larger KLX140L—is the perfect t if you’re looking for a fun and durable off-road motorcycle that’s easy to ride. With lower seat heights, electric start and smooth power in a chassis that’s easy to handle, the KLX140/140L has the capability to provide endless Good Times.

Off-road riders and mini-moto enthusiasts don’t have to settle for simple one-size machines with limited performance and cramped ergonomics. Kawasaki’s KLX140 has opened the door for a wider variety of riders in the small displacement off-road arena.

Both the KLX140 and KLX140L share a rigid box section steel perimeter frame for excellent handling characteristics, as well as a lightweight aluminum swingarm. They have 33mm telescopic front forks and a Uni-Trak® rear linkage for the adjustable rear shock. On the KLX140, this single rear shock has five-way preload adjustment, while the KLX140L offers a taller seat height (31.5” compared to 30.7” for the KLX140), longer suspension travel at each end, with the rear shock using a remote reservoir, adjustable preload, 22-way rebound and 14-way compression damping adjustment.

Showing the KX heritage, both the KLX140 and KLX140L use large 220mm petal-shape front rotor with a twin-piston caliper, and a 186mm petal-shape rear rotor. These provide plenty of stopping power. And the KX influence continues with the wheels, which have strong die-cast hubs and lightweight RK EXCEL aluminum rims. The KLX140 uses a 17” front and 14” rear wheel, while the taller KLX140L is equipped with a 19” front and 16” rear wheels to accommodate taller riders, accounting for the extra ground clearance on the 140L.

Color: Lime Green

MSRP:

KLX140: $3,099

KLX140L: $3,399

2016 Kawasaki KLX140 www.Totalmotorcycle.com Key Features

The Kawasaki KLX® family of off-road bikes is built for beginners and expert riders alike. Four models with two engine configurations suit a variety of riders, from young to old, short to tall.

Engineered by the same team that developed the Kawasaki KX™ motocross family, the KLX models have performance racing heritage and durability to keep going as long as the rider can, ensuring reliable, all-day enjoyment.

The KLX®140 off-road motorcycle is fun for both kids and adults alike. It features keyless electric start, smooth power and a chassis that can take on trails with confidence.

•Push button electric start
•High-revving 144cc air-cooled, SOHC, four-stroke engine
•Low 30.7-inch seat height
•7.1 inches of front and rear suspension travel to soak up bumps
•Front and rear disc brakes provide strong progressive stopping power

2016 Kawasaki KLX140 www.Totalmotorcycle.com Features and Benefits

BRAKES

The KLX140/140L has strong stopping power with front and rear disc brakes. The 220mm petal brake disc in the front with a largebore 27mm twin-piston caliper. Slowing the rear is a 186mm petal brake disc with a 27mm single-piston caliper.

WHEELS

The KLX140L features 19-inch front and 16-inch rear wheels to allow a more comfortable seat height for taller riders and ample
ground clearance. The KLX140 rides on 17-inch front and 14-inch rear wheels for a lower seat height and nimble handling.

FRAME

A low 30.7-inch seat height on the KLX140 (31.5-inch seat on the KLX140L) feels just right. The rigid, high-tensile steel perimeter frame creates a stable and well-balanced chassis for a condence-inspiring ride.

2016 Kawasaki KLX140 – www.Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $3099 USD

Power
Engine
4-stroke, 1-cylinder, SOHC, Air-cooled
Displacement
144cc
Bore x Stroke
58.0 x 54.4mm
Compression ratio
9.5:1
Fuel System
Keihin PB20
Ignition
Digital DC-CDI
Transmission
Five-speed with wet multi-disc manual clutch
Final Drive
Chain
Performance
Front Suspension / Wheel Travel
33mm telescopic fork / 7.1 in
Rear Suspension / Wheel Travel
Uni-Trak® linkage system and single shock with 5-way preload adjustability / 7.1 in
Front Tire Size
70/100-17
Rear Tire Size
90/100-14
Front Brakes
Single 220mm petal disc with a dual-piston caliper
Rear Brakes
Single 186mm petal disc with single-piston caliper
Details
Frame Type
High-Tensile steel, box-section perimeter
Rake/Trail
27° / 3.3 in
Overall Length
71.7 in
Overall Width
31.1 in
Overall Height
41.3 in
Ground Clearance
9.3 in
Seat Height
30.7 in
Curb Weight
205.0 lb**
Fuel Capacity
1.5 gal
Wheelbase
49.6 in
Color Choices
Lime Green
Warranty
6 Months
Kawasaki Protection Plus™ (optional)
12, 24, or 36 months

2016 Kawasaki KLX140 – www.Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $3599 CDN

Engine
Displacement 144cc
Type 4-stroke, Single
Bore and stroke 58.0 x 54.4 mm
Cooling Air
Compression ratio 9.5:1
Valve system SOHC, 2 valves, screw type adjusters
Fuel system Keihin PB20 carburetor
Ignition Digital DC-CDI
Lubrication Forced lubrication (wet sump)
Starting Electric
Brakes
Front: type Single 220 mm petal disc
Front: calipers Dual-piston caliper
Rear: type Single 186 mm petal disc
Rear: calipers Single-piston caliper
Dimensions
Overall length 1,820 mm (71.7 in.)
Overall width 790 mm (31.1 in.)
Overall height 1,050 mm (41.3 in.)
Wheelbase 1,260 mm (49.6 in.)
Ground clearance 235 mm (9.3 in.)
Seat height 780 mm (30.7 in.)
Curb mass** 93 kg (205 lbs.)
Fuel capacity 5.8 litres (1.3 gal.)
Drivetrain
Transmission 5-speed
Final drive Chain
Primary reduction ratio 2.880 (72/25)
Gear ratio: 1st 2.667 (40/15)
Gear ratio: 2nd 1.895 (36/19)
Gear ratio: 3rd 1.474 (28/19)
Gear ratio: 4th 1.182 (26/22)
Gear ratio: 5th 1.000 (24/24)
Final reduction ratio 3.571 (50/14)
Clutch Wet multi-disc, manual, cable operation
Frame
Type Tubular double cradle, box section perimeter, high-tensile steel
Wheel travel: front 180 mm (7.1 in.)
Tire: front 70/100-17
Wheel travel: rear 180 mm (7.1 in.)
Tire: rear 90/100-14
Caster (rake) 27°
Trail 85 mm (3.3 in.)
Suspension
Suspension, front 33 mm telescopic fork
Suspension, rear Uni-Trak linkage system and single shock with 5-way preload adjustability
Details
Warranty 6 months warranty

2016 Kawasaki KLX140 – www.Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

NA
