2024 Honda NX500: A NEW EXPERIENCE.

Introducing the 2024 Honda NX500…

The compact, versatile new NX500 offers perfect city agility and off-road ability. Combining both comfort and aggressive rally-style with a fairing and large screen shaped for wind protection. High specification technology includes 5-inch TFT screen with Honda RoadSync smartphone connectivity. And its A2-compliant twin-cylinder engine delivers flexible – hugely enjoyable – performance with HSTC traction management.

The iconic ‘NX’ designation returns to Honda’s line-up in the form of the new NX500.

Meaning ‘New X-over’, the NX500 is designed to be enjoyed on everything from a winding road to a gravel trail or long-distance adventure. Building on the popularity of the outgoing CB500X, it features new styling and a range of specification and performance upgrades.

Handling dynamics and feel are improved thanks to a 3 kilogram reduction (1.5kg of which comes from new lightweight 5-spoke cast aluminium wheels) in kerb weight to 196kg, revised spring rate and damping for the Showa 41mm Separate Function Fork Big Piston (SFF-BP) upside down forks, and sharper acceleration thanks to new fuel injection settings.

Further spec upgrades come in the form of a new 5-inch TFT screen, Honda RoadSync smartphone connectivity and HSTC. Led by a new headlight, the styling is completely refreshed, with new plastics from front to back mixing compact adventure-style usability with an imposing silhouette and solidity of form.

Honda’s A2-compatible mini-adventurer gets a new name – and even more rugged style – for 24YM. Power and torque remain the same for the 471cc engine – at 35kW and 43Nm – while an ECU update improves acceleration feel and Honda Selectable Torque Control is now standard. New wheels save 1.5kg of unsprung weight, adding to an overall weight loss of 3kg, and are matched by revised settings for the 41mm Showa SFF-BP USD forks and rear shock. Dual discs up front are worked by two piston calipers. A brand-new LED headlight opens up better visibility at night while a new 5-inch TFT screen offers Honda RoadSync smartphone connectivity, operated by a simplified and backlit 4-way toggle switch.





2024 Honda NX500 Totalmotorcycle.com Key Features

  • Lively twin-cylinder powerplant now equipped with Honda Selectable Torque Control (HSTC)
  • New PGM-FI settings improve low-rpm acceleration and power delivery across the rev-range
  • Assist/slipper clutch eases upshifts and manages rear wheel through downshifts
  • Sharp new adventure style incorporates aerodynamics to improve stability at speed
  • New LED headlight and taillight
  • New 5-inch full colour TFT screen includes Honda RoadSync connectivity for on-screen turn-by-turn navigation and access to other smartphone functions
  • New, simplified left hand switchgear easy to use and backlit for night-time
  • 41mm Showa Separate Function Fork Big Piston (SFF-BP) USD forks and rear shock feature fine-tuned settings
  • New, lighter weight wheels
  • Dual 296mm discs, Nissin axial mount two piston calipers

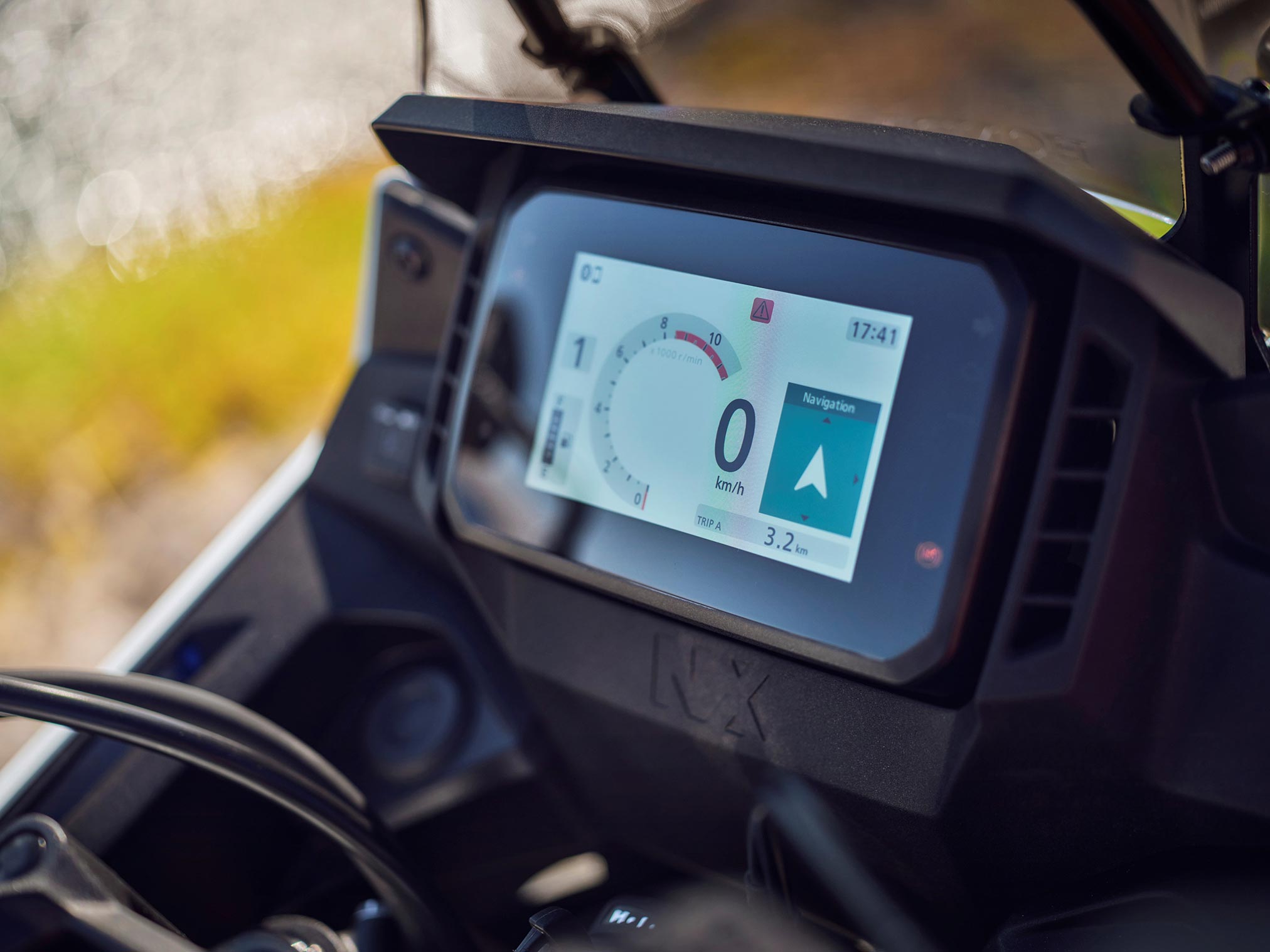

Fully Connected Colour TFT Display
New optical bonding technology to reduce glare and improve readability, the new 5-inch screen is intuitive to use and features the smartphone connectivity of Honda Roadsync.

Honda Selectable Torque Control (HSTC)
On the road, HSTC manages rear wheel traction in all conditions, especially in the rain. On dirt or gravel it can be switched off completely, for maximum drive.

Showa SFF-BP USD Forks
This is class leading suspension. 41mm Separate Function-Big Piston forks are set for precise reaction and feel, with dual discs for powerful braking.

A2-Compliant Twin-Cylinder Engine
Strong torque off the bottom and through the middle of the rev-range, with 43Nm peak, for the responsive acceleration all riders enjoy on, and off, road.

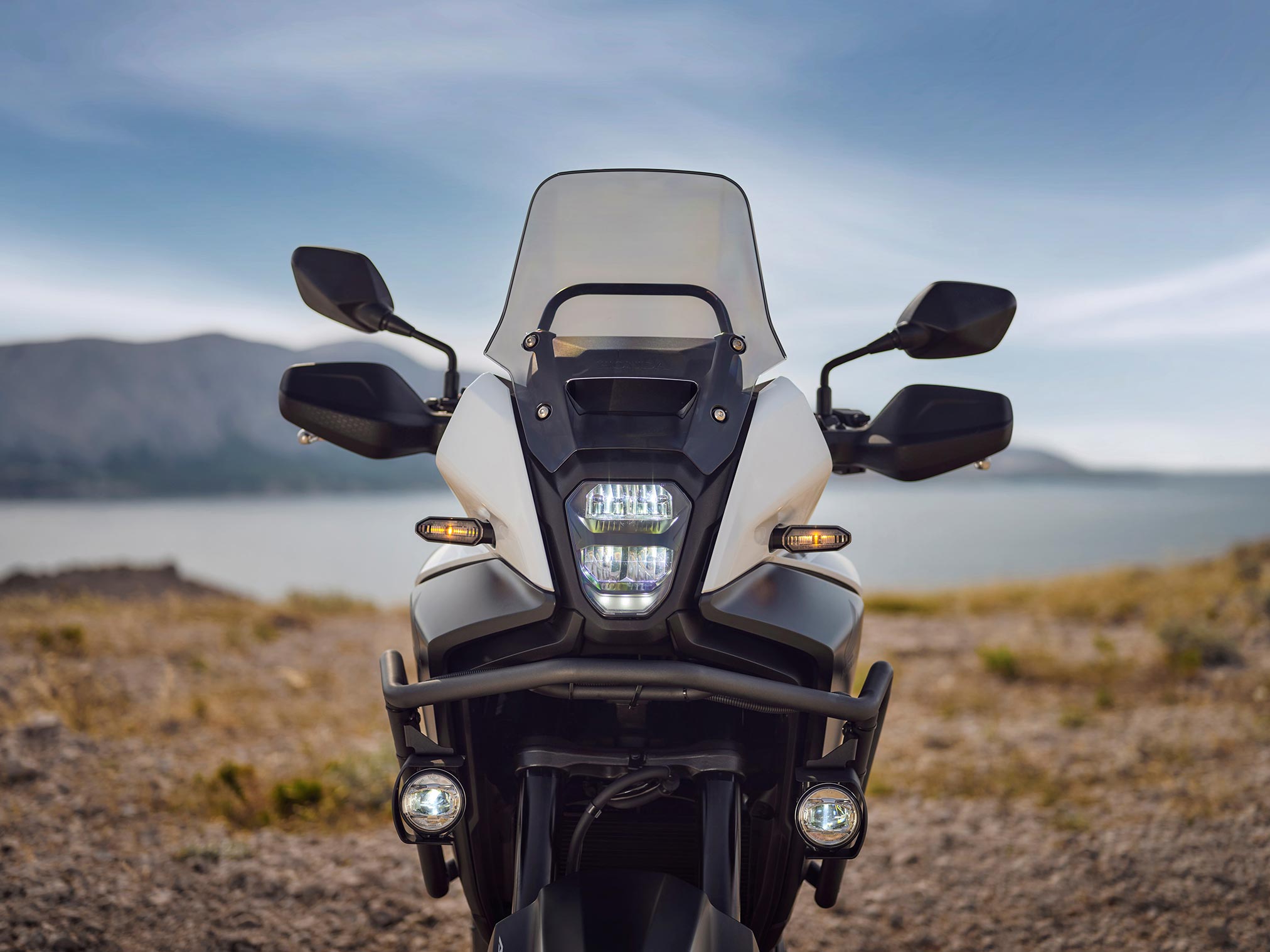

Powerful New Headlight
Throws out strong beam penetration and wide light distribution either side – which means you see a lot more when cornering at night.

Rally-Spec Wind Protection
For enhanced comfort over a long day’s ride the purposeful fairing and tall screen combine to direct airflow neatly over and around. Sharp graphics add a hint of competition style.

Go Short. Go long.
Go where you choose. Effortlessly at home in the city but built for adventure, the rugged NX500 blends a tough off-road silhouette with modern off-road-inspired design. Long-travel suspension absorbs the urban rough and tumble just as it does gravel trails helped by new, lightweight wheels. The 17.7L fuel tank holds plenty of range. And a relaxed riding position – and natural control of wide handlebars – are matched to an aerodynamic package that neatly channels airflow.

Make The Connection
This bike’s got your back. The 5-inch full-colour TFT display is all new, operated by a backlit switchgear with a very natural hand position allowing better visibility in all conditions. Both have been designed together for easy use, and the screen is engineered to minimise glare in bright sunlight. It also offers full connectivity through the Honda RoadSync app. A first in class, for Android and iOS smartphones, it means you can access on-screen turn-by-turn navigation, make and receive calls or listen to music while you ride.

830mm Seat Height
Comfortable reach and control, with 250mm ground clearance giving the NX real adventure capability.

196kg Kerb Weight
Easy to manage at walking pace, and through traffic, with reassuring stability out on the highway.

19-inch Front Wheel
For the sure-footed feel to ride on over rough surfaces and consistent, confidence-inspiring grip.


The CB500X, originally launched in 2013 alongside the naked CB500F (now CB500 Hornet) and fully faired CBR500R, injected crossover adventure style to Honda’s fun-focussed twin-cylinder ‘light middleweight’ trio.

Right from the start it was a motorcycle that, without fanfare, quietly got on with the job of being supremely competent and adaptable for a wide variety of owners.

The usefulness was down to a straightforward equation – a perky, well-regarded twin-cylinder engine which produced real torque and drive from low rpm while revving hard up top – plus a chassis that gave a supremely comfortable ride both around town and out on the open highway, all wrapped up in distinctive adventure styling.

It slipped between the role of short-hop commuter to weekend tourer effortlessly. Long travel suspension ironed out irregular road surfaces, wide handlebars provided leverage, and the upright riding position offered both comfort and a wide field of view for the rider.

In 2016 a first upgrade brought with it a larger fuel tank, more wind protection and taller screen, as well as LED lighting, spring preload-adjustable front forks and adjustable brake lever. The 19YM evolution delivered more sophisticated adventure style, more engine performance and a number of chassis upgrades. 22YM saw the addition of high-quality Showa 41mm SFF-BP USD forks, dual front discs, lightweight swingarm and redesigned front wheel.

For 24YM Honda’s equation for this bike is improving, but not changing in its essence. The name is new, however. The NX500 is carving out its own identity, with aggressively redesigned styling, premium technology and a variety of detail upgrades that are sure to continue its journey into the hearts and minds of European riders.

The letters NX have quite a history with Honda and the single-cylinder NX650 Dominator – which debuted in the late 1980s with unique mix of road and off-road style – is fondly remembered across Europe.

NX means ‘New X-over’ which is exactly what the new NX500 is. Fun on a winding road, fun on a gravel trail and ready to go the distance, its all-round credentials are reinforced with an impressive update to its adventure styling. The wheels too are lighter, and the suspension settings front and rear have been upgraded to improve ride quality.

The A2-compliant, slipper clutch-equipped twin-cylinder engine benefits from the addition of Honda Selectable Torque Control (HSTC) as well as ECU updates to improve acceleration.


The 24YM NX500 will be available in the following colour options:

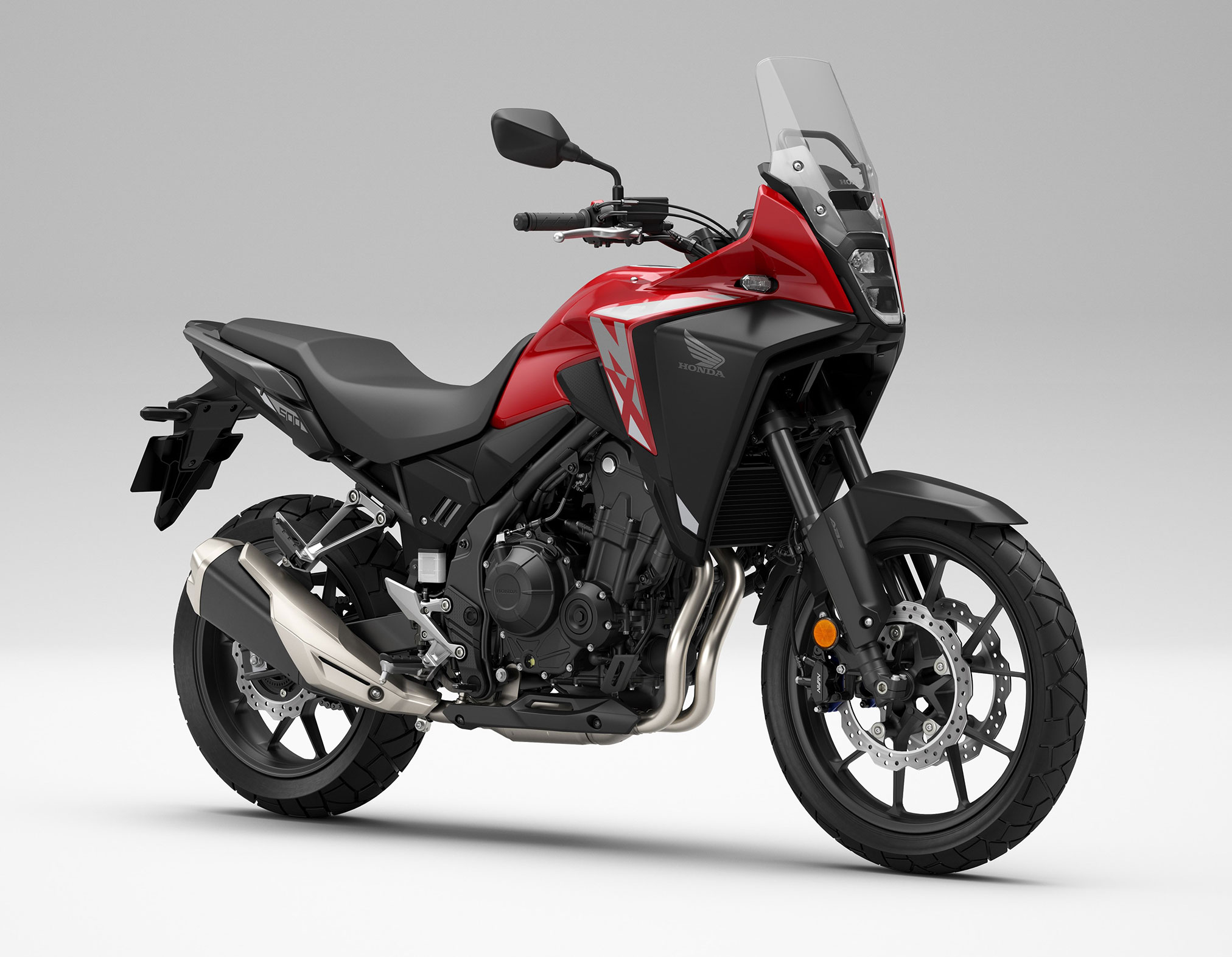

Grand Prix Red

Matt Gunpowder Black Metallic

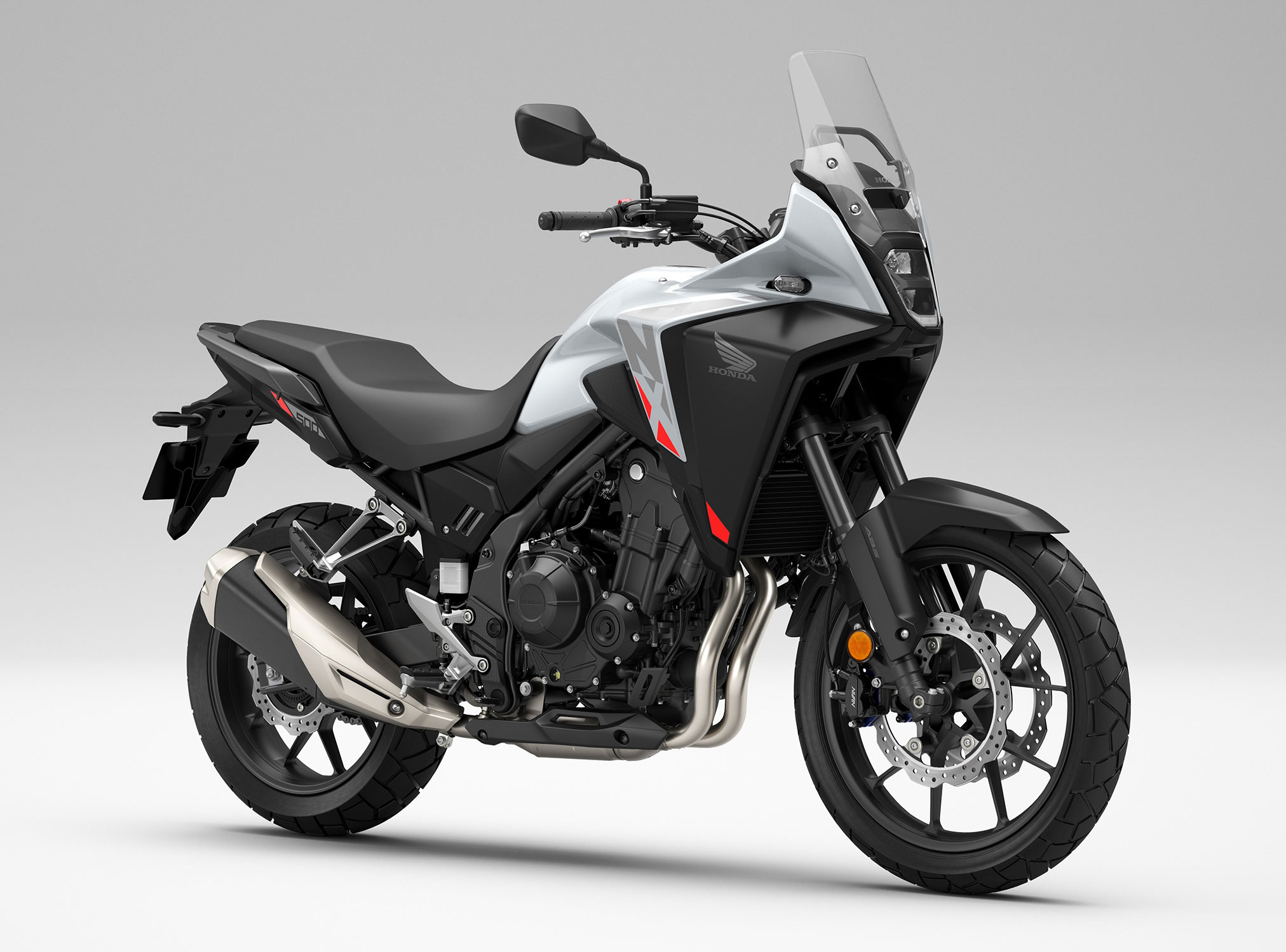

Pearl Horizon White





2024 Honda NX500 Totalmotorcycle.com Features and Benefits

Styling & Equipment

Directed by the design theme of ‘Daily Crossover’, wherever it goes – city block, winding road, highway or gravel trail – the NX500 looks the part, wearing new style that mixes compact adventure-style usability with an imposing silhouette and solidity of form

A new LED headlight design maintains beam penetration but throws out wider light distribution for increased visibility when riding – and cornering – at night. It’s matched to a new LED taillight. All other lighting is also LED.

Premium technology – in the form of a brand new, 5-inch full colour TFT screen inherited from the XL750 Transalp – uses optical bonding to improve visibility in bright sunlight, a first for a Honda motorcycle. By sealing the gap between the cover glass and TFT screen with resin glare is reduced, and backlight transmittance improved. It’s customisable between Bar, Circle and Simple display patterns and also offers the IOS/Android smartphone connectivity of Honda RoadSync.

This new feature – alongside a simplified, easy-to-use, backlit 4-way toggle-switch on the left handlebar – allows straightforward, on-screen turn-by-turn navigation as well as the option (via a Bluetooth helmet headset) for the rider to make calls or listen to music. All an owner has to do is download the Honda RoadSync app from the Play Store or the App Store, connect to the NX500, and go.

A slim seat profile allows for free movement around the machine and aids easy ground reach and, to help manoeuvrability, the steering angle is 38° from centred to full lock.

Gunmetal grey tapered steel handlebar elevate control further still. Seat height is 830mm and the upright riding position is very accommodating, while providing excellent visibility. Overall dimensions are 2,165mm x 830mm x 1,415mm, with 180mm ground clearance.

The fuel tank holds 17.5L including reserve, and, combined with the engine’s excellent fuel economy of 3.6L/100km (27.8km/l) (WMTC mode), gives a range of over 480km.



Light, strong and unchanged for 24YM, the 35mm diameter steel diamond-tube mainframe has a tuned degree of yield that gives plenty of feedback to the rider as road surfaces change. The shape and position of the engine mounts, plus the frame’s rigidity balance, keep vibration to a minimum.

Wheelbase is 1,445mm with rake and trail of 27.5°/108mm and front/rear bias percentage of 48.7/51.3. Kerb weight is 196kg – 3kg lighter than the CB500X.

Showa 41mm Separate Function Fork Big Piston (SFF-BP) USD forks divide the functions – Big Piston pressure separation damper in one leg, spring mechanism in the other – and reaction and ride quality are top draw. They feature 135mm axle travel (150mm cushion stroke) and have new spring rate and damping settings to improve reaction and feel for both road and off-road riding.

The single-tube shock absorber, with 135mm axle travel (60mm cushion stroke) has new settings to match the front and its large-diameter piston ensures excellent temperature management; it offers 5-stage preload adjustment. Constructed from 2mm steel, the swingarm employs a hollow cross member – it is stiff rotationally and flexible laterally to improve handling.

Completely new are the cast aluminium wheels. Going from a conventional Y-shaped 7-spoke design to Y-shaped 5-spokes saves 800g front and 700g rear. This reduction of unsprung weight works with the revised suspension settings to improve handling and feel in all situations. The 19-inch front is matched to a 17-inch rear; trail-pattern tyres are sized 110/80-R19 and 160/60-R17.

Dual 296mm front discs are worked by Nissin axial mount, two-piston calipers; the rear 240mm disc a single-piston caliper.



The A2-licence friendly 471cc, 8-valve liquid-cooled parallel twin-cylinder layout offers a well-proportioned balance of physical size and willing, enjoyable power output, with an energetic, high-revving character and zappy top end. And it’s very much an engine whose overall performance and character belie its relatively small capacity; peak power of 35kW arrives at 8,600rpm, with 43Nm torque delivered at 6,500rpm.

A 24YM addition is HSTC to manage rear wheel traction for increased peace of mind and a real boost for rider confidence. The system compares front and rear wheel speeds to detect rear slip and controls the fuel injection to smoothly reduce torque. HSTC can also be turned off completely if the rider wishes.

Feeding the PGM-FI fuel injection is a more-or-less straight shot of airflow through the airbox and throttle bodies. Optimisation of ignition timing and air/fuel ratio equals more powerful acceleration feel from low rpm, with linear power delivery and throttle feel. The exhaust muffler features dual exit pipes, giving a sporting edge to each pulse, and a rasping high-rpm howl.

Bore and stroke are set at 67mm x 66.8mm and compression ratio is 10.7:1; the crankshaft pins are phased at 180° and a primary couple-balancer sits behind the cylinders, close to the bike’s centre of gravity. The primary and balancer gears use scissor gears, reducing noise. The crank counterweight is specifically shaped for couple-balance and its light weight allows the engine to spin freely, with reduced inertia.

Acting as a stressed member, the engine complements the frame’s rigidity with four frame hangers. Internally the cylinder head uses roller rocker arms; shim-type valve adjustment allows them to be light, for lower valve-spring load and reduced friction.

A silent (SV Chain) cam chain has the surface of its pins treated with Vanadium, reducing friction with increased protection against wear. Inlet valve diameter is 26.0mm with exhaust valve diameter of 21.5mm. Piston shape is carefully designed to reduce piston ‘noise’ at high rpm. Friction is reduced by striations on the piston skirt (a finish that increases surface area, introducing gaps in which oil can flow for better lubrication).

The ‘triangle’ proportion of crankshaft, main shaft and countershaft is efficiently compact and the crankcases employ centrifugally cast thin-walled sleeves; their internal design reduces the ‘pumping’ losses that can occur with a 180° phased firing order. A deep sump reduces oil movement under hard cornering and braking; oil capacity is 3.2L.

A slick-changing six-speed gearbox is managed by an assist/slipper clutch, eliminating rear wheel ‘hop’ under hard braking and downshifting.




A range of Genuine Honda Accessories designed in parallel with the motorcycle for perfect cohesion are available for the NX500, as individual innovative parts that complement the unit or grouped in packs, and ready to bolt straight on with an official Honda guarantee:


Adventure Pack

For the rigours of the open road, the Adventure Pack enhances the off-roader appearance while adding extra comfort and protection. Fog Lights improve visibility in poor weather conditions and are mounted on top of the Front Side Pipes, finished in black, which help to protect the motorcycle. The Knuckle Guards protect the hands from the cold and flying debris, while the Smoked Screen and Wheel Stripes add style. A Tank Pad shields paint from zip damage.


Travel Pack

A set of dual 16.5L semi-rigid plastic panniers with an easy attachment system combine with a Rear Seat Bag with up to 22L of capacity make traveling easier.


Urban Pack

For daily riding in and out of town this is the perfect setup; a 38L Top Box offers plenty of storage space and comes complete with Pillion Backrest and handy Inner Bag. The Main Stand allows easy chain maintenance and convenient parking on uneven surfaces.


Comfort Pack

For added comfort and practicality, the Heated Grips take the cold out of winter days, with up to 5 heat levels and memory function while being displayed on the TFT. The Wind Deflectors help keep turbulent traveling air away from the rider’s lower body. An ACC Socket offers a charging point under the seat and the 3L Tank Bag allows convenient carrying with a see-through pocket for smartphones and a rain cover.


All the accessories featured in packs can also be purchased individually.






2024 Honda NX500 – Totalmotorcycle.com USA Specifications/Technical Details
Canada MSRP Price: $ TBA CDN
Europe/UK MSRP Price: £6799 GBP (On The Road inc 20% Vat)






2024 Honda NX500 – Totalmotorcycle.com Canada Specifications/Technical Details





2024 Honda NX500 – Totalmotorcycle.com Europe Specifications/Technical Details

Type Liquid-cooled, 4-stroke DOHC parallel twin
Displacement 471cc
Bore and stroke 67mm x 66.8mm
Compression Ratio 10.7: 1
Max. Power Output 35kW @ 8,600rpm
Max. Torque 43Nm @ 6,500rpm
Noise Level Lurban 74.0dB Lwot 77.0dB
Oil Capacity 3.2L
Carburation PGM FI electronic fuel injection
Fuel Tank Capacity 17.5L (inc reserve)
CO2 Emissions WMTC 82 g/km
Fuel Consumption (WMTC) 3.6L/100km / 27.8km/l (WMTC mode)
Battery Capacity 12V 7.4AH
Clutch Type Wet multiplate, Assisted slipper clutch
Transmission Type 6 speed
Final Drive Chain
Type Steel diamond
Dimensions (L´W´H) 2,165mm x 830mm x 1,415mm
Wheelbase 1,445mm
Caster Angle 27.5°
Trail 108mm
Seat Height 830mm
Ground Clearance 180mm
Kerb Weight 196kg
Turning radius 2.4m
Type Front Showa 41mm SFF-BP USD forks,
Type Rear Prolink mono with 5 stage preload adjuster, steel hollow cross swingarm
Type Front Multi-spoke cast aluminium
Type Rear Multi-spoke cast aluminium
Rim Size Front 19M/C X MT2.5
Rim Size Rear 17M/C X MT4.5
Tyres Front 110/80R19M/C59H
Tyres Rear 160/60R17M/C69H
ABS System Type 2 channel
Type Front Dual 296mm x 4mm disc with Nissin axial mounted two piston calipers
Type Rear Single 240mm x 5mm disc with single piston caliper
Instruments 5in TFT Meter with customisable layout, including but not limited to Speedometer, Tachometer, Clock, Gear position, Shift UP Indicator
Headlight LED
Taillight LED
Connectivity Yes (Honda RoadSync)
12V Socket Optional
Auto Winker Cancel No
Quickshifter No
Security System HISS (Honda Intelligent Security System)
Cruise Control No
Additional Features ESS


All specifications are provisional and subject to change without notice.

# Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.




Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
