2024 Honda Rebel 1100 Touring DCT Guide

2024 Honda Rebel 1100 Touring DCT
ReviewKey FeaturesFeatures & BenefitsSpecifications
2024 Honda Rebel 1100 Touring DCT2024 Honda Rebel 1100 Touring DCT 2024 Honda Rebel 1100 Touring DCT 2024 Honda Rebel 1100 Touring DCT

2024 Honda Rebel 1100 Touring DCT: TIMELESS ATTITUDE.

Introducing the 2024 Honda Rebel 1100 Touring DCT…

The friendly 500cc twin-cylinder CMX500 Rebel, released in 2017, fused tradition with ground-breaking new ideas to capture younger riders for whom a motorcycle is so much more than just transport – riders for whom their motorcycle is a lifestyle, an attitude and an expression of individual identity.

The Rebel’s combination of a timeless ‘bobber’ look and unique, forward-looking, contemporary style earned it immediate popularity in its first sales season. And it has been far from a one-year wonder: in both 2021 and 2022, the CMX500 Rebel was the best-selling custom style machine in Europe. Accessible, easy to ride and live with, by going its own way the Rebel proved an accomplished success in standard trim. And as a blank canvas for customisation, it has been a machine more than ready for whatever its owner’s imagination has had in store for it.

For 2021, where the CMX500 Rebel led, a new motorcycle followed – the CMX1100 Rebel. It took the essence of what’s made the smaller bike so special and added more performance, more character and a wealth of Honda’s most advanced technology.

Armed with all of the above, and a keen price tag, the CMX1100 Rebel offers a step up – or across from a different segment altogether – for a wide range of riders looking for something that extra bit different.

For 2023, the family expanded once again with the introduction of the Rebel 1100 Touring, a dedicated touring version ready for the call of the open road.

This combination of performance, specification and accessibility has clearly resonated with riders across Europe. The CMX1100 Rebel sits second behind its smaller sibling in the custom bikes sales chart for 2023 year to date.

For 2024, it carries on mechanically unchanged but the standard model gets two  striking new colours and the CMX1100T benefits from a new colour combination to maintain its broad appeal.

As ever, serious performance is on tap from the 1,084cc parallel twin-cylinder engine, plus meaty character and evocative exhaust note. Honda Selectable Torque Control with integrated Wheelie Control, Cruise Control and 3 default riding modes working through Throttle by Wire make up a comprehensive package of supporting electronics. High-quality running gear includes 43mm cartridge-style front forks, ‘piggyback’ rear shock absorbers and four-piston, radial-mount front brake caliper. All lighting is LED, with negative LCD instrument display. A 6-speed Dual Clutch Transmission (DCT) option is also available.



The CMX1100 Rebel has a dual personality. It’s been designed for a leisurely laidback cruise, but also to offer an exciting riding experience when a twisty road presents itself. Riders moving up from smaller bikes will appreciate the manageable dimensions and weight (seat height is a mere 700mm), while more experienced riders will find instant, accessible enjoyment from the chassis’ handling potential, with its stiff tubular steel frame, quality naked bike-spec suspension and high-powered braking.

All-comers will love the character and performance of the 1,084cc parallel twin-cylinder engine (as used by the CRF1100L Africa Twin), which has been re-tuned for super-strong bottom and mid-range punch and character, plus an evocative, enhanced exhaust note.

Throttle By Wire management brings with it sophisticated rider aids: there are 3 default riding modes with a cluster of different parameters to suit riding conditions or rider mood, including engine power delivery, engine braking, the level of Honda Selectable Torque Control (with integrated Wheelie Control), and the shift schedule of the optional Dual Clutch Transmission technology. Cruise control comes as standard.

As a 21st century bobber, the big Rebel’s stripped-back style speaks volumes with its minimalism. Steel mudguards front and rear sit atop fat tires; the circular headlight mixes old school looks with new school LED bulbs and mirrors the round, negative LCD instrument display. For modern day convenience, there’s a USB-C charger in the under-seat storage space.

In 2023, the family was expanded with the arrival of the dedicated Touring version, the Rebel 1100 Touring featuring a broad aerodynamic half fairing and hard panniers for extended comfort and long-distance adventures.

BAGGER ATTITUDE. EVERYDAY CONVENIENCE.

Prepare to unleash your inner rebel as you experience the epitome of two-wheeled coolness with the remarkable Rebel 1100T. Embrace the thrill of the open road as a low seat height and superior handling seamlessly merge with long-distance functionality and four selectable ride modes, allowing you to conquer any journey easily. You’ll command attention wherever you ride with head-turning style courtesy of spacious hard saddlebags, and a commanding front fairing. Equipped with standard cruise control and anti-lock brakes and available in a host of new colors, the 2024 Rebel 1100T gives you the confidence to explore without limits. Get ready to embody the essence of adventure and embark on an unforgettable journey, proudly riding the pinnacle of Honda excellence.



The standard 2024 CMX1100 Rebel will be available in the following colour options:

**NEW** Glint Wave Blue Metallic

**NEW** Iridium Gray Metallic

The Rebel 1100 Touring will be available in the following colour option:

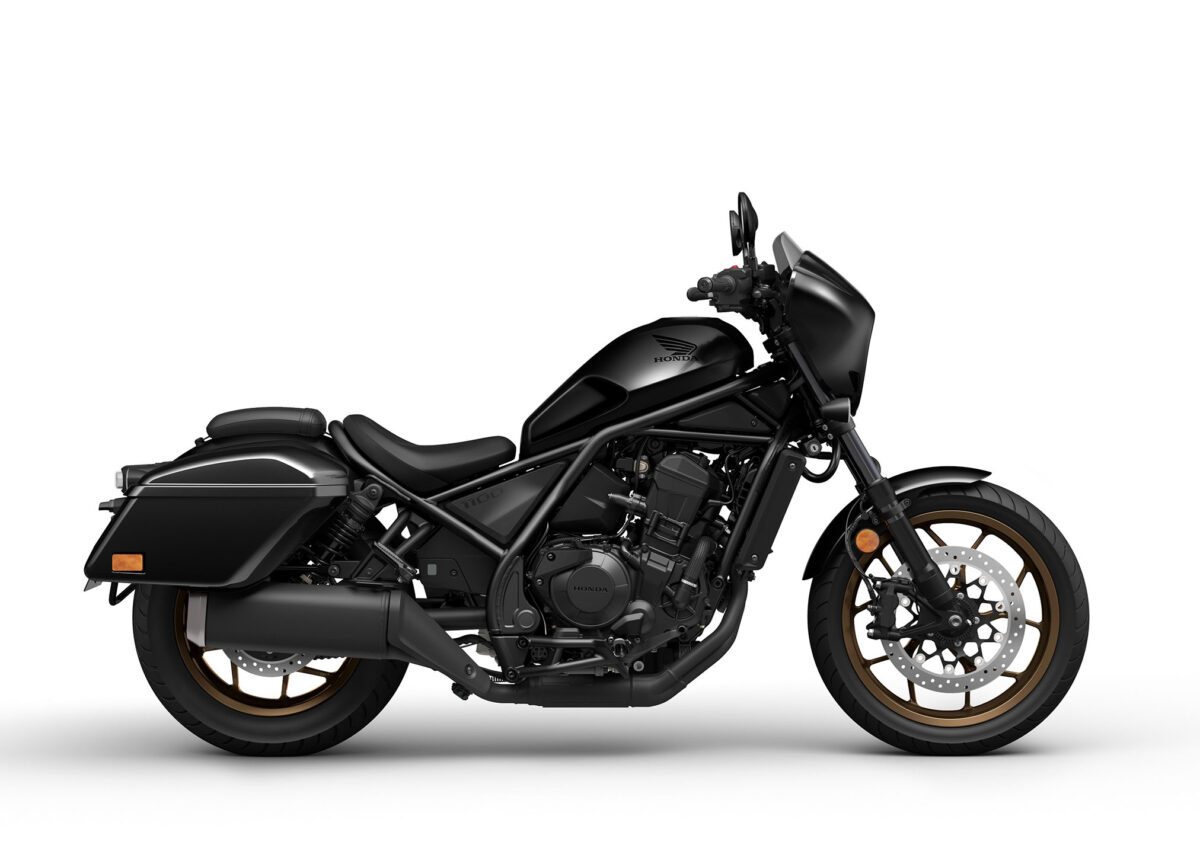

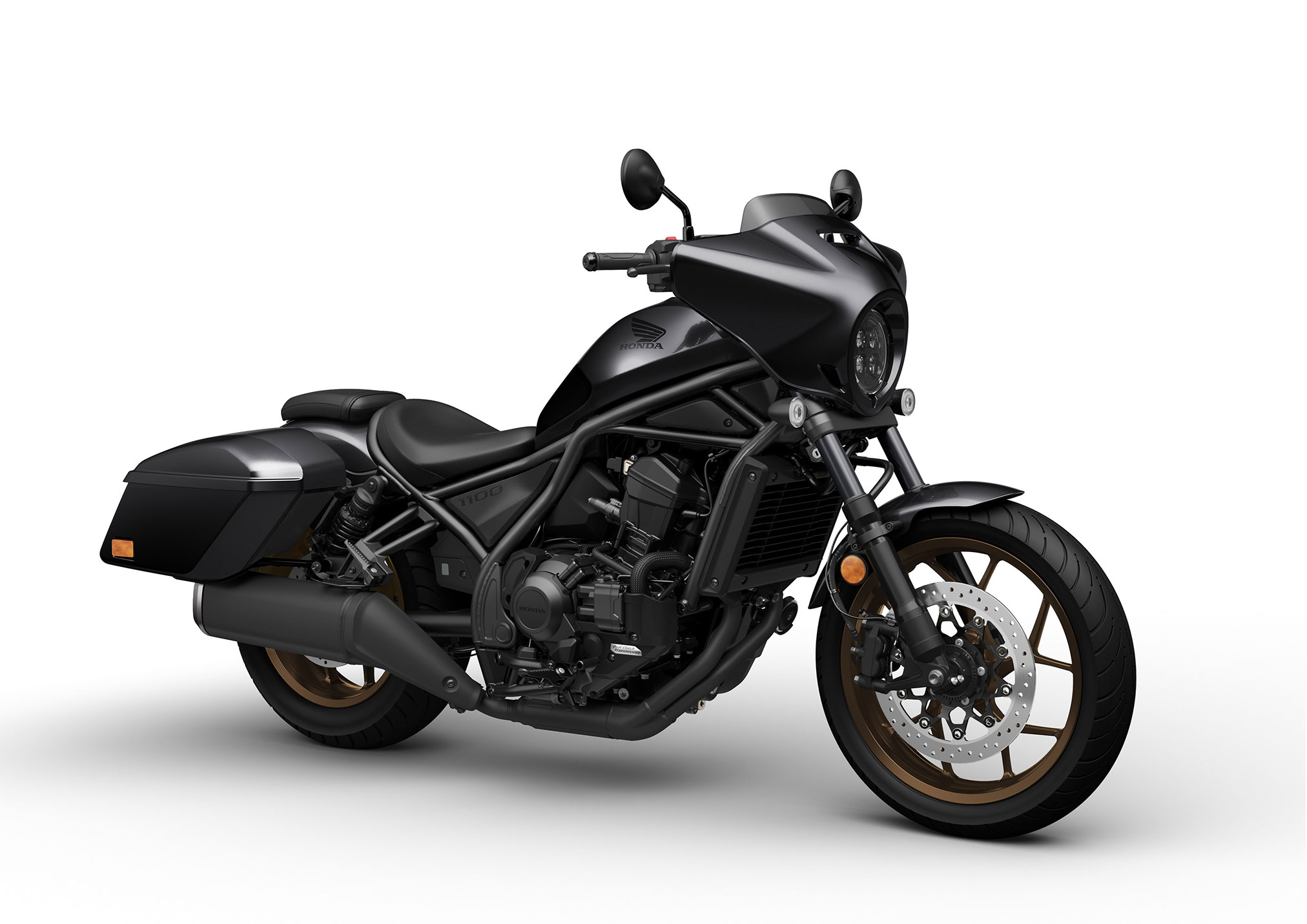

Gunmetal Black Metallic with NEW bronze wheels









2024 Honda Rebel 1100 Touring DCT Totalmotorcycle.com Key Features

Model updates:  The CMX1100 Rebel receives two brand-new contemporary colours for 2024. The dedicated touring Rebel 1100 Touring remains available and receives a colour update of its own.

STEP UP
Ready to upgrade your current ride? Then it’s time. Time for something completely new. Step up to the new Rebel CMX1100. A bare-boned motorcycle that pays homage to the fat-tyred ‘bobber’ silhouette of days gone by, but lays down contemporary design details everywhere. Sure, it’s one great looking bike, and will casually cruise an open boulevard. But, by design, it’s so much more than that.

Rebel 1100 Touring
The Ultimate Cruiser.

Take your ride to the next level with the new Rebel 1100 Touring, equipped with tour specification accessories. Beautifully finished rigid saddlebags are sleek and practical, with a total storage capacity of 35L (16L/19L capacity right and left) for all your riding essentials. The large mounted front fairing and windscreen offers even more protection from the elements and wind buffeting, providing comfort through the city or out on the open road. Experience freedom in style with the new Rebel 1100 Touring, it’s time to start your next journey.

OLD SCHOOL’S NEW COOL
The Rebel CMX1100 is something special…
With its individual looks – as well as easy, nimble handling and fun engine response – riders, many new to two wheels, have enjoyed and customised the Rebel CMX500 the world over. But now’s the moment for more. The family resemblance is instant, but the Rebel CMX1100 has a great deal going on. The torquey, characterful parallel twin-cylinder engine features Throttle By Wire management, 4 riding modes, Honda Selectable Torque Control and Wheelie Control. Cruise control is standard and our unique, six-speed Dual Clutch Transmission an option. And this cool cruiser is also made for corners – 43mm cartridge-style front forks, piggyback rear shocks and a radial-mount four-piston front brake caliper see to that.



SOHC, 8-valve, parallel twin-cylinder powerplant
Whether you want to cruise or hustle, this engine rewards. 64kW peak power with 98Nm peak torque are strong numbers, and will exhilarate every time you wind on the throttle. But, less obvious, is that compact dimensions centralise mass neatly, making for a low centre of gravity with maximum ground clearance.

4 riding modes, 3-level HSTC and Wheelie Control
You are in charge of this engine’s output; STANDARD mode, at low speed is relaxed but as rpm rises it unleashes much more potential. RAIN transmits low engine power and engine braking, matched to high Wheelie Control and HSTC for extra reassurance, or a relaxed ride. SPORT gives aggressive power delivery, with low Wheelie Control and HSTC intervention. USER mode allows complete customisation.

Six-speed manual gearbox or Dual Clutch Transmission (DCT)
You can choose either a six-speed manual transmission or unique, six-speed DCT, which offers manual gear changes (from trigger shifters on the left handlebar) or smooth, automatic performance with shift character reflecting riding mode selection.

Flexible seating and USB Type-C charger
You can ride solo or carry a passenger, as the rear seat pad quickly and easily unbolts. Under the seat there’s a useful 3L storage compartment, which features a USB Type-C charging point.

Full LED lighting
The evocative, low-set 175mm diameter circular headlight houses four direct emitting LED bulbs with thick inner lenses. The small, 55mm turn indicators have classic looks, while the oval, clear-lensed LED taillight strikes a contemporary note.

High quality suspension front and rear
The cartridge-style front forks feature blacked-out 2-piece lowers (manufactured from both extruded and die-cast aluminium) mated to 43mm stanchions, finished in a dark navy oxide titanium coating. Twin, spring preload-adjustable rear shocks feature pressurised piggyback reservoirs for consistent damping.

Big brakes and tires
Braking power is served up by a front radial-mount mono-block four-piston caliper biting a 330mm floating disc and rear, single-piston caliper and 256mm disc. Both are managed by ABS. Cast aluminium wheels feature sporty Y-shaped spokes and wear fat tires; a 180/65B-16 rear and 130/70B-18 front.

STRIPPED-BACK STYLE
Nothing less than undiluted, thrilling motorcycling.
The Rebel CMX1100 is built for the pure pleasure that two wheels bring, a blacked-out 21st century roadster-meets-bobber, designed from the ground-up to be an engaging, enjoyable ride, with engine and handling performance potential to spare. Every detail makes it different; the flangeless fuel tank features two-tone paint, both front and rear mudguards are drawn from 1mm-thick steel and mount with die-cast aluminium brackets. Seat height is just 700mm, and the soft-density material contoured to give support under hard acceleration. An offset, 120mm diameter negative digital display offers intuitive information delivery while wide, uncluttered handlebars mount with substantial, 1-inch clamps.





2024 Honda Rebel 1100 Touring DCT Totalmotorcycle.com Features and Benefits

Styling & Equipment

  • Raw style a statement of muscular, stealthy simplicity
  • Full LED lighting with 4 bulb LED headlight
  • Ignition key also opens the seat, which hides storage space and USB Type-C socket
  • Cruise control standard
  • Touring option adds an aerodynamic half-fairing and panniers



The blacked-out CMX1100 Rebel offers a simple, raw and ‘unprocessed’ look created by the same US-based Honda R&D studio that laid down the style of the CMX500 Rebel. Long and low, with narrow body crowned by a scalloped, two-tone 13.6L flangeless fuel tank, its minimalist presence has real depth, with proportions that are complemented naturally with a rider on board.

Both front and rear mudguards are drawn from 1mm-thick steel and mount with die-cast aluminium brackets. And everywhere you look there are design cues that reinforce the unique overall Rebel look. The low set 175mm diameter headlight has a classic form but houses four LED bulbs with thick inner lenses for a well-defined frontal signature. The small 55mm circular indicators, too, have classic looks but the oval, clear-lensed LED taillight strikes a contemporary note and chimes with other Rebel details.

The seat is contoured to support the rider under hard acceleration but with soft density for comfort. The Rebel rider can go solo or carry a passenger, as the rear seat pad quickly and easily unbolts. Under the seat there’s a 3L storage compartment which features a USB Type-C charging point.

An offset 120mm negative LCD instrument display offers intuitive information delivery. The ignition key locates on the left side of the frame and also opens the seat without having to be removed from the ignition. The uncluttered handlebars mount with substantial 1-inch clamps and the left-hand switchgear manages the riding modes and the optional DCT. And for long highway days, cruise control is fitted as standard.

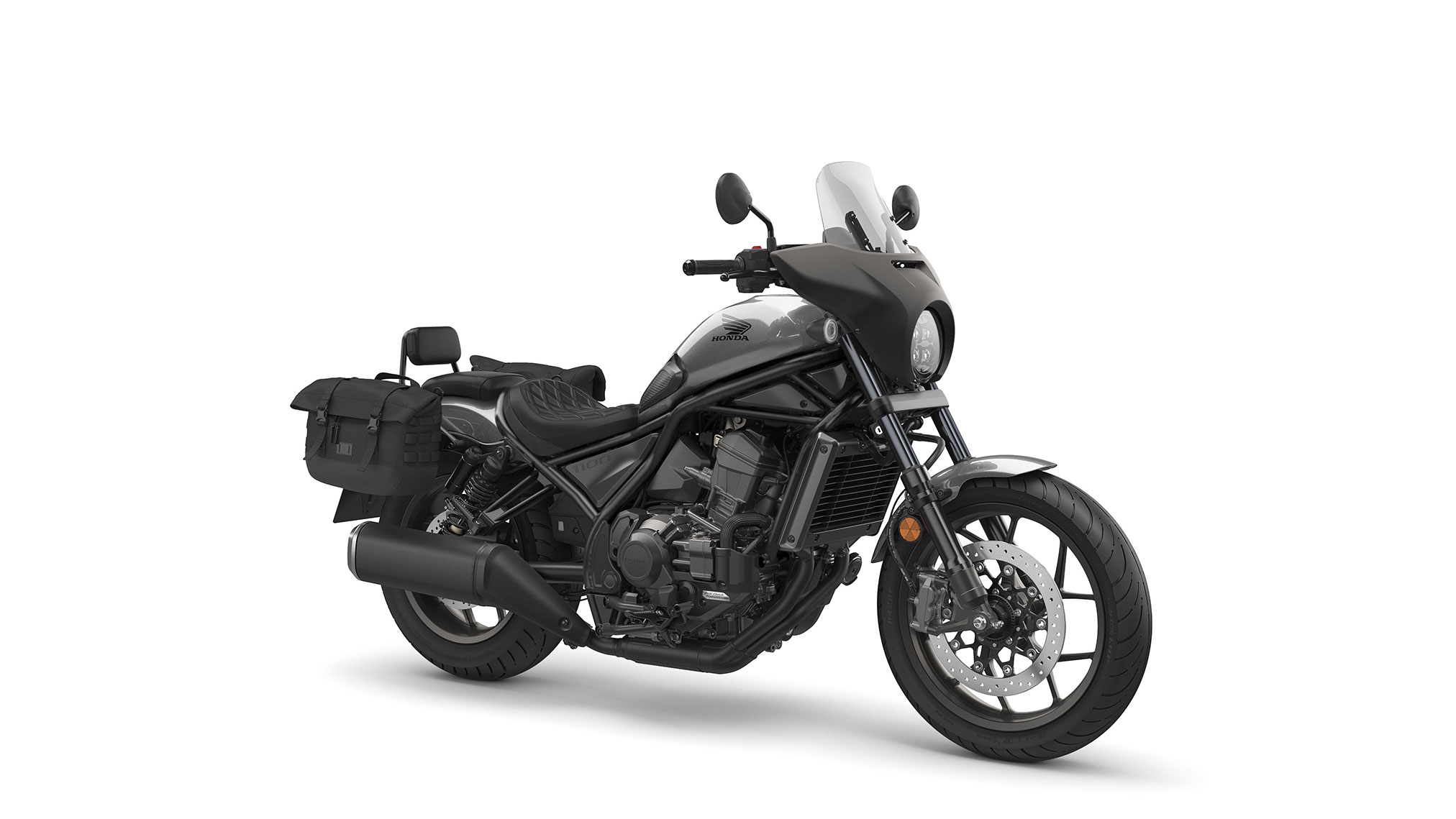

The Rebel 1100 Touring is designed for the rider that wants all the potential the standard bike offers, but also the ability to cover larger distances with in-built comfort and useful carrying capacity. The fork-mounted half-fairing, available only for the Rebel 1100 Touring, is both stylishly evocative and – with its bespoke stubby screen – offers good wind deflection. Hard rear panniers, with hinged top lids, blend in perfectly and offer a full 35 litres carrying capacity (right 16L, left 19L) – an additional 11 litres compared to the nylon accessory saddle bags.





Engine

  • 1,084cc parallel twin-cylinder engine
  • Strong performance, with well-defined character and delivery
  • Throttle By Wire engine management and tuned exhaust note



The CMX1100 Rebel’s 1,084cc SOHC 8-valve parallel twin-cylinder engine produces peak power of 64kW @ 7,000rpm with 98Nm @ 4,750rpm peak torque. These are healthy numbers in this segment of the market, and a guarantee of strong performance. Increased inertia from a heavy flywheel mass means the low-rpm response is not only extremely strong but delivered with real character.

Compact dimensions (thanks to the Unicam drive train and semi-dry sump crankcase) centralise mass neatly, make for a low centre of gravity with maximum ground clearance when coupled with the Rebel’s low-slung frame design.

A 270° phased crankshaft and uneven firing interval ensure character. But also a unique exhaust system, valve timing and lift generate an even stronger ‘pulse’ feel. And, in keeping with the Rebel’s dual personality, the engine pulse changes from one that responds harmoniously at low revs to all throttle inputs, to a more boisterous, sensation-heightening ‘throb’ as the rpm rises.

Engine management is via Throttle By Wire (TBW) and PGM-FI feeds the throttle bodies from a 7L airbox. Adding to riding satisfaction is the exhaust note, which has been tuned to deliver a deep, low-frequency sound pulse through the 5.3L oval-section muffler below 4,000rpm married to a much more powerful, high-frequency note as rpm climbs.

The crankcases split horizontally, and the water pump is housed within the clutch casing with a thermostat integrated into the cylinder head. Manual and DCT versions of the engine share common crankcases with only minor external differences. Secondary vibrations are neutralised by the mutually reciprocating motion of the pistons, while primary inertial and coupling vibrations are cancelled by the use of biaxial balance shafts. The water and oil pumps are driven by the balancer shafts.

A crank pulsar – with relator teeth spaced at 10° intervals – manages misfire detection, important for OBD2/EURO5 compliance. In addition, for EURO5 Linear Air Flow (LAF) sensors in the downpipes give accurate measurement of the air/fuel mixture ratio.



Engine Electronics

  • Throttle By Wire (TBW) control
  • 3 default riding modes to choose from, plus USER customisation
  • 3-level Honda Selectable Torque Control



TBW manages engine performance and character, plus the level of Honda Selectable Torque Control (HSTC) with integrated Wheelie Control. There are pre-set 3 modes for the rider to choose covering a wide variety of riding conditions. Mode selection is managed from the left-hand switchgear; an indicator in the instrument display activates when HSTC is working.

STANDARD offers a middle setting for engine power delivery, engine braking and HSTC, delivering a relaxed ride at low rpm and speeds, while unleashing much more of the Rebel’s potential as the revs rise.

RAIN transmits low engine power delivery and braking, matched to high HSTC, for relaxed riding and extra reassurance on wet or slippery surfaces.

SPORT gives aggressive engine power delivery and standard engine braking, with low HSTC intervention to allow maximum performance.

USER mode offers the ability to customise between the settings for the preferred combination. Once set, the USER setting is automatically stored so there’s no need to re-set each time the ignition is turned on.



Dual Clutch Transmission (DCT)

  • 3 default D mode (automatic) shifting schedules mirror the riding modes
  • USER mode offers customisation

Honda has sold over 240,000 DCT-equipped motorcycles across Europe since the system first appeared as an option on the VFR1200F in 2009. For the CMX1100 Rebel, since its introduction 57% of owners have chosen the DCT option.

DCT delivers consistent, seamless gear changes and very quickly becomes second nature in use. It uses two clutches: one for start-up and 1st, 3rd and 5th, the other for 2nd, 4th and 6th, with the mainshaft for each clutch located inside the other for compact packaging.

Each clutch is independently controlled by its own electro-hydraulic circuit. When a gear change occurs, the system pre-selects the target gear using the clutch not currently in use. The first clutch is then electronically disengaged as, simultaneously, the second clutch engages.

The result is a consistent, fast and seamless gear change. Furthermore, as the twin clutches transfer drive from one gear to the next with minimal interruption of the drive to the rear wheel, any gear change shock and pitching of the machine is minimised, making the change feel direct as well as smooth. Extra benefits include durability (as the gears cannot be damaged by missing a gear) impossibility of stalling, low stress urban riding, reduced rider fatigue and extra ‘brain space’ to concentrate on pure riding aspects such as riding line, cornering, braking and acceleration points.

The DCT system offers two distinct riding approaches – the Automatic settings, with pre-programmed shift patterns which constantly read vehicle speed, gear selected and engine rpm to decide when a shift should occur, and the Manual Transmission setting for gear changes using the paddle-shift style triggers on the left handlebar.

Through TBW control, the DCT shift patterns are linked with the 3 riding modes.

In STANDARD riding mode, the DCT shift pattern offers a balance between high-gear, low-speed cruising and low-gear, full-throttle excitement.

RAIN selects higher gears more quickly for a super-smooth ride.

SPORT delivers higher-rpm and lower gears, holds onto revs for longer before upshifts, and downshifting at higher rpms for more engine braking effect.

The USER option also allows the rider to adopt any of the three DCT shift patterns in any riding mode according to preference.



Chassis

  • Signature tubular steel frame underpins Rebel styling
  • Steering geometry provides stability with easy handling characteristics
  • 43mm cartridge-style front forks and piggyback rear shocks, both spring preload adjustable
  • Radial mount four-piston front brake caliper and 330mm floating disc
  • 130/70B18, 180/65B16 front and rear tires



A styling statement in itself, the CMX1100 Rebel’s tubular steel frame is based around the raw and simple design of its sibling and features the same defined ‘theme’ line running diagonally front to back, with the fuel tank playing its part sat above the 35mm diameter main tubes which, naturally, are larger than the CMX500 Rebel’s. The 50.8mm diameter swingarm, too has an ‘engineered’ look to match.

Wheelbase is 1,520mm; the forks have a 30° angle for cruiser style, 2° offset from the 28° ‘rake’ line itself; trail is 110mm. This combination delivers the right look, but also straight-line stability and accurate, easy handling. Wet weight is set at 223kg with manual transmission, and 233kg for the DCT-equipped option. The Rebel 1100 Touring weighs in at 238kg manual and 248kg in DCT form.

Seat height is a very manageable 700mm and the triangle between handlebars, seat and mid-mount footpegs places the rider firmly ‘in’ the motorcycle. The overall geometry allows generous lean angles of 35° each side (as measured by Honda), meaning the CMX11100 Rebel can enjoy a twisty ‘canyon’ ride and clip apexes with the best of them.

The cartridge-style front forks feature blacked-out 2-piece lowers (manufactured from both extruded and die-cast aluminium) mated to 43mm stanchions finished in a dark navy titanium oxide coating. Twin rear shocks feature a 12.5mm rod and pressurised ‘piggyback’ reservoir. Both front and rear suspension are adjustable for spring preload.

Braking power is served up by a front radial-mount monoblock four-piston caliper biting a 330mm floating disc and rear single piston caliper/256mm disc, both managed by ABS. Cast aluminium wheels feature 5 sporty Y-shaped spokes and wear fat tires; a 180/65B16 rear and 130/70B18 front.





Accessories

As a motorcycle born to be accessorised there are a range of Genuine Honda Accessories ready to bolt straight on to the CMX1100 Rebel.

There are two packs available that have grouped accessories into two categories with different customer styles in mind: the ‘street’ and the ‘tour’ line-ups:





The Street Pack includes:

  • Wadding Seat ­– black or brown
  • Tank Pad (Side & Centre)
  • Headlight Cowl
  • Short Front Mudguard
  • Wheel stripes



The Tour Pack includes:

  • Nylon Saddlebags (right 10L / left 14L) & Supports
  • Passenger Backrest
  • Backrest Pad
  • Rear Carrier



All accessories can also be purchased individually and the following accessories are also available:

  • Solo Carrier
  • Protective Film
  • Screen Cowl & Attachment
  • Brown Pillion Seat
  • Grip Heaters
  • Wind Shield – only available for Rebel 1100 Touring









2024 Honda Rebel 1100 Touring DCT – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $11,349 USD
Canada MSRP Price: $16,978 CDN
Europe/UK MSRP Price: £ TBA GBP (On The Road inc 20% Vat)

ENGINE

·      Engine Type

1083cc liquid-cooled 22.5° parallel-twin four-stroke

·      Bore And Stroke

92.0mm x 81.5mm

·      Induction

PGM-FI electronic fuel injection; 46mm throttle body; throttle by wire

·      Valve Train

Unicam SOHC; 4 valves per cylinder

·      Compression Ratio

10.1:1

DRIVE TRAIN

·      Transmission

Six-speed automatic DCT

·      Final Drive

#525 O-ring-sealed chain; 16T/42T

CHASSIS SUSPENSION BRAKES

·      Front Suspension

43mm fork; 4.8-inch travel

·      Rear Suspension

Dual Showa shocks with 12.5mm shafts, adjustable preload, and piggyback pressurized reservoirs; 3.7-inch travel

·      Front Brake

Single 330mm disc with radial-mount four-piston caliper; ABS

·      Rear Brake

Single 256mm disc; ABS

·      Front Tire

130/70-18

·      Rear Tire

180/65-16

DIMENSIONS

·      Rake

28°

·      Trail

4.3 inches

·      Wheelbase

59.8 inches

·      Seat Height

27.5 inches

·      Curb Weight

524 pounds (Includes all standard equipment, required fluids and a full tank of fuel)

·      Fuel Capacity

3.6 gallons including 1.1-gallon reserve

OTHER

·      Model ID

CMX1100TD

·      Emissions

Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment.

·      Available Colors

Metallic Black, Matte Armored Green Metallic

FACTORY WARRANTY INFORMATION

·      One Year Included

Transferable, unlimited-mileage limited warranty

·      Optional Extended

Extended coverage available with a HondaCare® Protection Plan











2024 Honda Rebel 1100 Touring DCT – Totalmotorcycle.com Canada Specifications/Technical Details

Engine & Drivetrain

Engine Type

Liquid-cooled parallel twin with 270° phased crankshaft

Displacement

1,084 cc

Bore & Stroke

92 mm x 81.5 mm

Compression Ratio

10.1:1

Valve Train

SOHC, Unicam, 4 valves per cylinder

Fuel Delivery

PGM-FI electronic fuel injection with 46 mm throttle bodies

Transmission

Standard model: Six-speed manual
DCT model: Six-speed Dual Clutch Transmission with three automatic shift modes and a manual mode

Final Drive

#525 chain; 16T/42T

Chassis & Suspension

Front Suspension

43 mm telescopic fork; 121 mm (4.8 in) travel

Rear Suspension

Dual Showa shocks w/ 12.5 mm shafts & adj. preload, piggyback pressurized reservoirs; 95 mm (3.7 in) travel

Additional Information

Tires

Front: 130/70R-18
Rear: 180/65R-16

Brakes

Front: Single radial-mounted four-piston caliper with full-floating 330mm disc
Rear: 256mm disc

ABS

2 channel ABS

Seat Height

700 mm (27.6 in)

Wheelbase

1520 mm (59.8 in)

Curb Weight

Standard model: 238 kg (525 lb)
DCT model: 248 kg (547 lb)

Fuel Capacity

13.6 litres

Colour

Gunmetal Black Metallic

Warranty

12 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus









2024 Honda Rebel 1100 Touring DCT – Totalmotorcycle.com Europe Specifications/Technical Details

ENGINE
Type SOHC liquid-cooled 4-stroke 8-valve parallel twin with 270° crank and Uni-cam.
Displacement 1084cc
Bore & Stroke 92mm x 81.5mm
Compression Ratio 10.1:1
Max. Power Output 64kW at 7,000rpm
Max. Torque 98Nm at 4,750rpm
Oil Capacity 4.8/4.3 (5.2/4.7 DCT)
FUEL SYSTEM
Carburation PGM-FI electronic fuel injection
Fuel Tank Capacity 13.6L
Fuel Consumption 20.4km/l (4.9L/100km) – MT and DCT
Noise levels (dB) Lurban75.7dB, Lwot79.6dB – MT;
Lurban 75.5dB, Lwot 79.9dB – DCT
CO2 Emissions 114g/km – MT and DCT
ELECTRICAL SYSTEM
Starter Electric
Battery Capacity 12V/11.2AH
ACG Output 0.419kW
DRIVETRAIN
Clutch Type MT:Wet multiplate clutch

DCT: Wet multiplate hydraulic 2-clutch

Transmission Type MT: 6-speed Manual Transmission

DCT: 6-speed Dual Clutch Transmission

Final Drive Chain
FRAME
Type Diamond
CHASSIS
Dimensions (L x W x H) 2240mm x 853mm x 1115mm – MT
2240mm x 834mm x 1115mm – DCT
Wheelbase 1,520mm
Caster Angle / Fork Angle 28° / 30°
Trail 110mm
Seat Height 700mm
Ground Clearance 120mm
Kerb Weight CMX1100 Rebel – MT: 223kg / DCT 233kg

Rebel 1100 Touring – MT: 238kg / DCT 248kg

SUSPENSION
Type Front Preload adjustable 43mm cartridge style
Type Rear Preload adjustable twin piggyback rear shock
WHEELS
Type Front Multi-spoke cast aluminium
Type Rear Multi-spoke cast aluminium
Rim Size Front MT3.50
Rim Size Rear MT5.00
Tires Front 130/70B18 M/C
Tires Rear 180/65B16 M/C
BRAKES
ABS System Type 2-channel ABS
Type Front Radial mounted monoblock four-piston brake caliper, 330mm floating single disc
Type Rear Single piston caliper, 256mm single disc
INSTRUMENTS & ELECTRICS
Instruments Offset 120mm negative LCD instrument display, USB-C charger
Security System HISS
Headlight LED
Taillight LED



All specifications are provisional and subject to change without notice.



# Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.



Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 11115 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle, the World’s Largest Motorcycle Site with over 425 million readers since 1999. Total Motorcycle is my pride and joy and being able to reach 425 million people has been incredible and I could not have done it without the support of my visitors, readers and members...thank you so much! We are all making a difference to millions of riders worldwide.
