2024 Honda CBR650R Guide

2024 Honda CBR650R
ReviewKey FeaturesFeatures & BenefitsSpecifications

2024 Honda CBR650R 2024 Honda CBR650R 2024 Honda CBR650R 2024 Honda CBR650R 2024 Honda CBR650R

2024 Honda CBR650R: RR MACHINE FUN. CBR PRACTICALITY.

Introducing the 2024 Honda CBR650R…

Honda’s fully faired CBR650F, launched in 2014 alongside the naked CB650F, provided a healthy slice of four-cylinder middleweight performance, very much at the sporty end of the ‘sports touring’ spectrum. Five years later, the CBR650F became the CBR650R, the upgrade from ‘F’ to ‘R’ indicating an even more potent shot of sporty ability designed to be explored, used and enjoyed on the street.

In the process of its transformation the CBR650R became, deliberately, a rare breed: a four-cylinder sports bike that provides similar pleasure, enjoyment and adrenaline to an RR machine, yet with enough practicality – and sensible running costs – to make it a viable option as day-to-day transport in addition to weekend fun.

It’s a direction that was well received. In 2021, the CBR650R was the best-selling sports bike in Europe as it continued its development curve with user-driven detail improvements and a major upgrade for the front suspension.

It’s got a smooth rush of turbine-like inline power, from low- to high-rpm. Aggressively redrawn styling, inspired by our CBR1000RR-R Fireblade. And premium technology, like new TFT screen and Honda RoadSync connectivity, that make this star shine even brighter.

What R You Today?

Four-cylinder middleweight sports motorcycles are rare, beautiful things. The CBR650R is it. It’s got a smooth rush of turbine-like inline power, from low- to high-rpm. The next-level performance advantage that shifting with E-Clutch delivers – if you want it. Aggressively redrawn styling, inspired by our CBR1000RR-R Fireblade. And premium technology, like new TFT screen and Honda RoadSync connectivity, that make this star shine even brighter.

2024 is an important year for the CBR650R and while updated style and functionality will get attention, this bike – alongside its naked sibling, the CB650R – will go down in history as the first Honda to be available with Honda E-Clutch technology, which is designed to make motorcycling, from beginner right through to expert, even more enjoyable – and even more exciting.

The CBR650R evolves its race-inspired style with an aggressive update from headlight to taillight. A brand-new 5-inch TFT screen offers Honda RoadSync connectivity, operated by simplified 4-way toggle switch – a new design made very easy to use. Engine performance is unchanged at 70kW power and 63Nm torque, with A2 option. The CBR650R alongside the naked CB650R – will be the first Honda to be offered with the option of Honda E-Clutch technology, which gives the rider choice of automatic clutch operation by simply using the shift pedal. Chassis specification includes Showa SFF-BP USD forks, dual four-piston radial mount front calipers and 120/70-ZR17 and 180/55-ZR17 tire combination.







2024 Honda CBR650R Totalmotorcycle.com Key Features

  • Sports styling evolves aggressively, shaped for speed
  • New 5-inch full colour TFT screen includes Honda RoadSync connectivity for on-screen turn-by-turn navigation and access to other smartphone functions
  • New, simplified left hand switchgear easy to use and backlit for night-time
  • All lighting LED, with new headlight and taillight
  • 41mm Showa Separate Function Big Piston (SFF-BP) USD forks
  • Four-piston, radial-mount front brake calipers and floating discs
  • 120/70-ZR17 and 180/55-ZR17 front and rear tires
  • 70kW peak power with 63Nm peak torque
  • 35kW A2 licence option available
  • Honda Selectable Torque Control (HSTC)

It’s About CBR
Pure supersports DNA, just like the Fireblade. Sleek and aggressive.

CBR Tricolour
Our racing signature: Red for passion, Blue for technical development and White for competition.

Honda Selectable Torque Control (HSTC)
HSTC smoothly manages rear wheel traction, wet or dry, so carving a set of corners is always a thrill. The system can also be turned off completely.

Honda RoadSync Smartphone Connectivity
Want to use your phone’s nav or listen to music? No problem. By downloading the Honda RoadSync app, you can connect it to the CBR650R.

Sports Quality Suspension and Brakes
Dual, radial mount Nissin four-piston calipers grip 310mm discs – hard. Showa 41mm SFF-BP USD front forks and rear shock offer fingertip feel for on-the-edge tire grip.

New Full Colour 5-Inch TFT Screen
With intuitive information display, straightforward ergonomics, full connectivity and optically bonded resin layers for maximum clarity and visibility in direct sunlight.
Inline Four-Cylinder Engine
The power of 4; a smooth rush through the midrange, exhilarating rise to the redzone and exhaust adrenaline-soaked exhaust note. And an A2 conversion is available, ready for full power.

CBR Inspired Styling

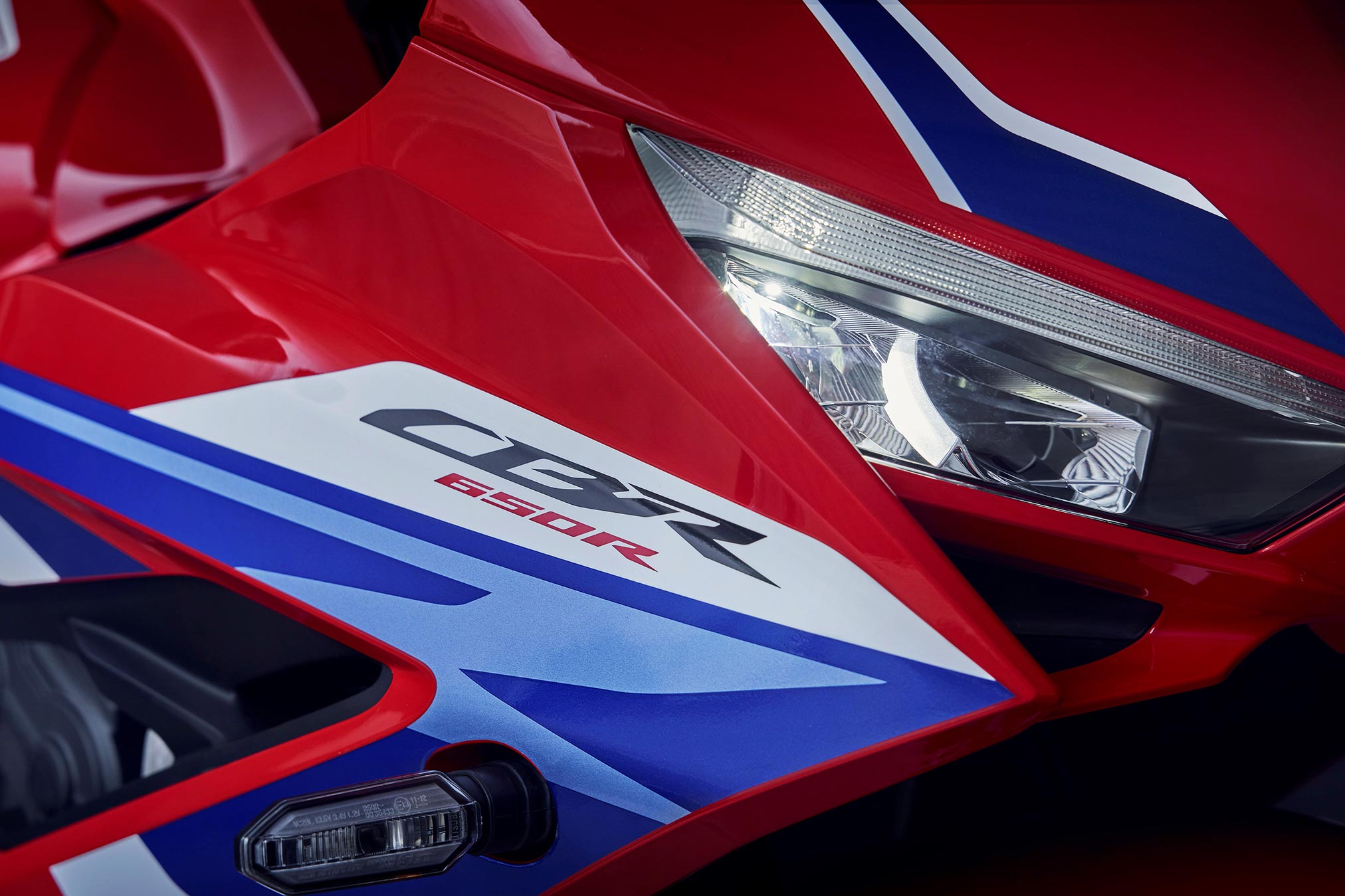

Our racing DNA runs deep. The CBR650R wears sharp new bodywork and dual LED headlights inspired by the awesome CBR1000RR-R Fireblade.

The Power Of Four
For the purest sports performance the inline, four-cylinder DOHC 16-valve engine produces 70kW / 94 hp @ peak – up to a 12,000rpm redline – with 63Nm of torque for smooth drive out of corners. There’s a 35kW conversion for A2 licence, which is ready for full power once an A licence is held. And, because power needs control, an assist and slipper clutch manages the rear wheel through hard braking and downshifting, preventing lock-up.

Make The Connection
This bike’s got your back. The 5-inch full-colour TFT display is all new, operated by a backlit handlebar switchgear with a very natural hand position allowing better visibility in all conditions. Both have been designed together for easy use, and the screen is engineered to minimise glare in bright sunlight. It also offers full connectivity through the Honda RoadSync app. For Android and iOS smartphones, it means you can access on-screen turn-by-turn navigation, make and receive calls or listen to music while you ride.

Honda’s CB650R naked middleweight and its sibling, the CBR650R, both receive a style refresh and new technology for 2024.

The CB650R’s Neo Sports Café unique look has evolved to make it a sinuous, more dynamic and purposeful-looking machine. Led from the front by the new slanted LED headlight, it features new radiator shrouds and a sharper new rear fairing complete with new taillight.

For its CBR sibling, redesigned dual LED headlights are matched with updated upper and lower fairings that, along with the redesigned tail unit, combine muscularity with slim lines and attractive angles to ramp up the CBR650R’s pure sporting appeal.

Both bikes feature Honda RoadSync connectivity a new 5-inch full colour TFT screen designed for optimal readability on bright days.



For 2024, there’s a fresh look to the CBR650R’s stylish lines and a new headlight, fairing, rider/pillion seat, tail unit and taillight inject sharper sporting energy.

A new 5-inch full colour TFT screen is optically bonded for readability on bright days and features Honda RoadSync connectivity. Managed by new, easy-to-use 4-way lefthand toggle switch (also backlit) the rider can now enjoy on-screen, turn-by-turn navigation and other smartphone features.

Performance from the four-cylinder engine is unchanged; 70kw peak power with 63Nm are fun figures to play with, and the classic in-line 4 cylinder ‘pick-up’ and high-revving top end power are longstanding Honda calling cards. A 35kW option is available for A2 licence holders.

Available as an option on the CBR650R, the new Honda E-Clutch takes away the need for the rider to use the clutch lever to make a shift either up or down the gearbox.

The chassis is as before and a perfect package around town or on a twisting back road. A steel diamond frame provides core rigidity while 41mm Showa SFF-BP USD front forks and Showa rear shock deliver high-quality suspension control. Four-piston radial-mount front brake calipers work 310mm floating discs and cast aluminium wheels mount 120/70-ZR17 and 180/55-ZR17 front and rear tires.



The 2024 CBR650R will be available in two colour options:

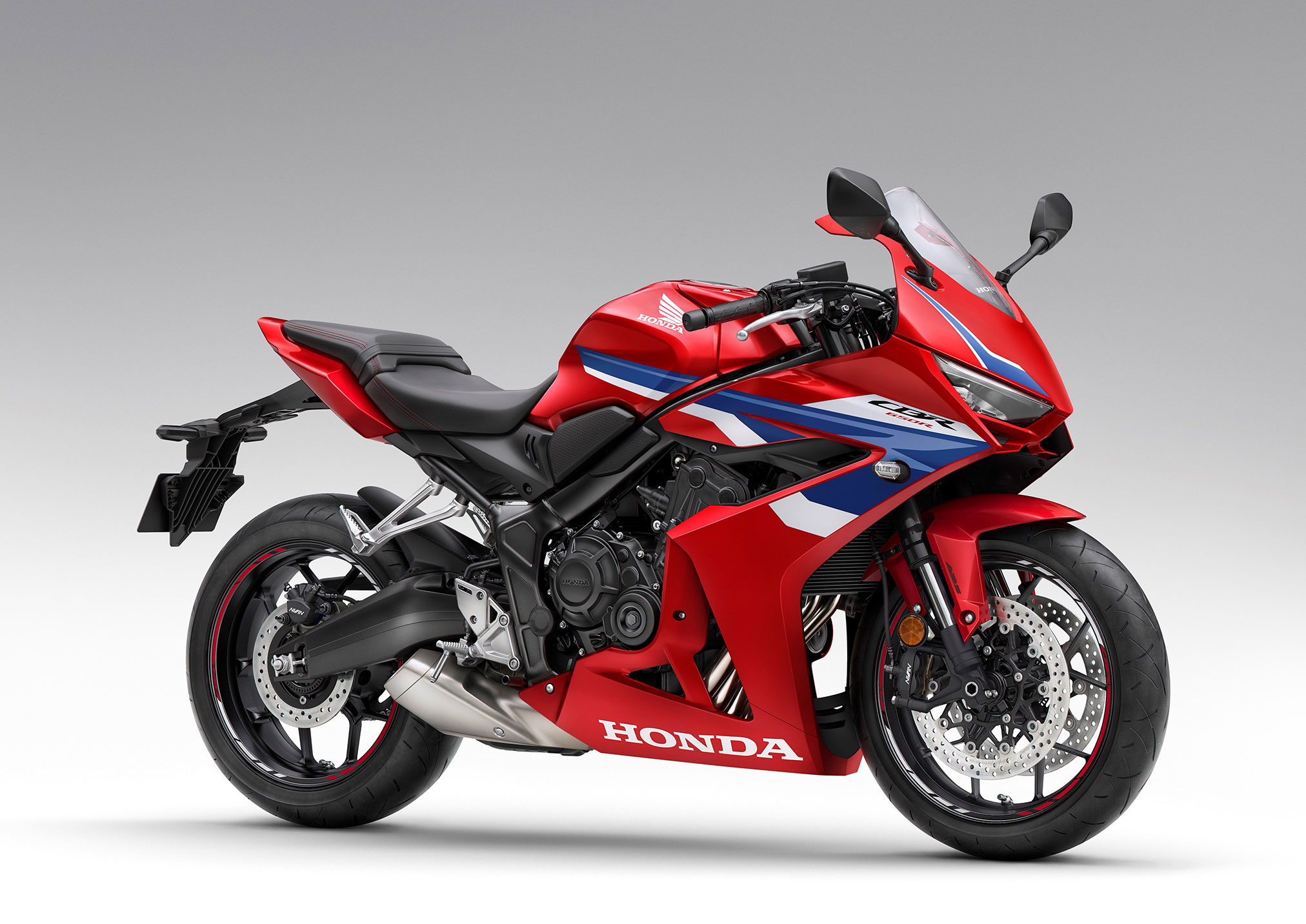

Grand Prix Red Tricolour

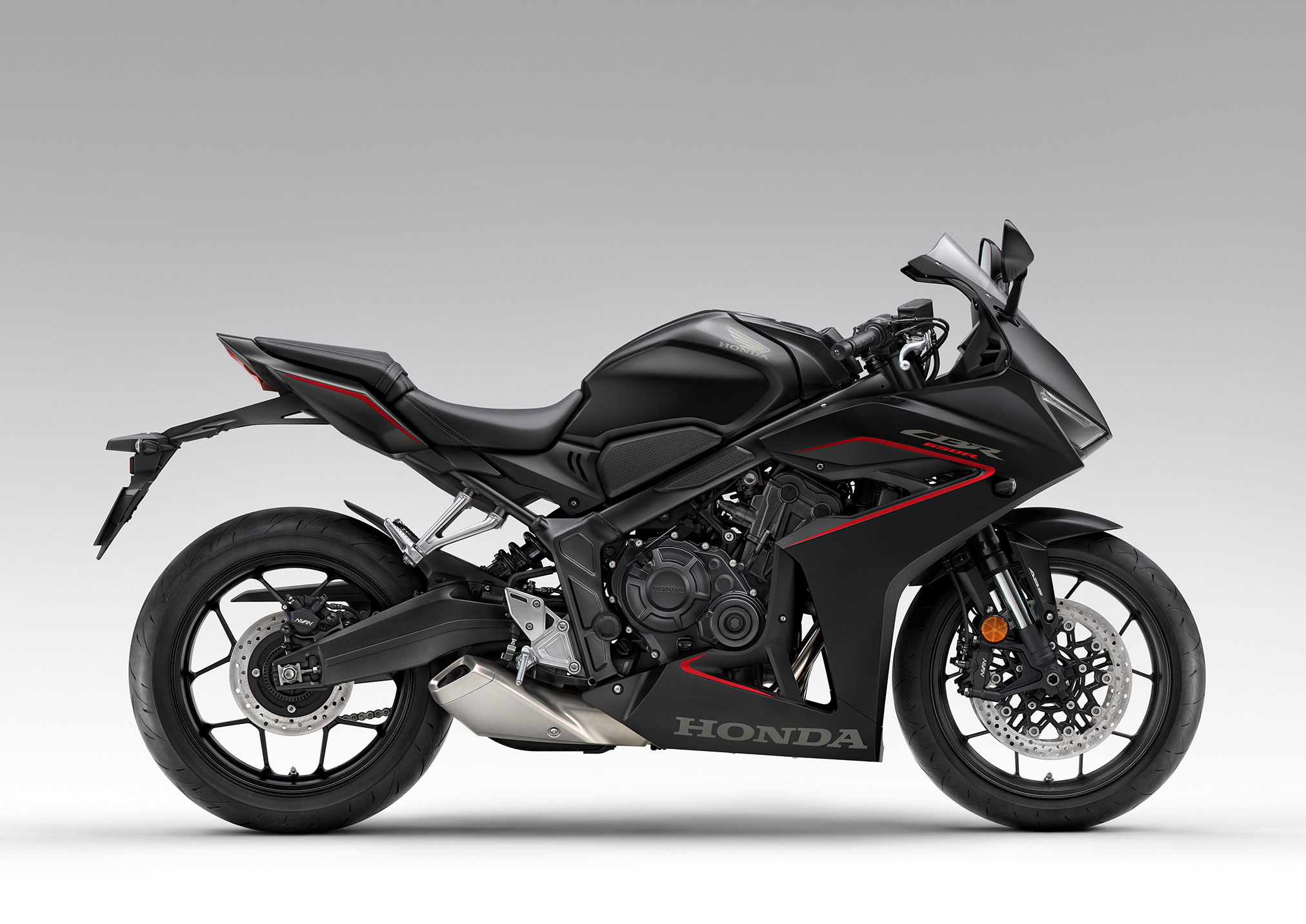

Matt Gunpowder Black Metallic









2024 Honda CBR650R Totalmotorcycle.com Features and Benefits

Styling & Equipment

With its four-cylinder power unit clearly on display, the CBR650R’s new wrapping ramps up pure sporting appeal and is shaped purely for speed. Led by redesigned dual LED headlights – which emit a penetrating stare – redrawn upper and lower fairings blend muscularity with slim lines and angles.

An aggressive riding position starts with clip-on handlebars that mount beneath the top yoke, matched to rear set footpegs. The new seat unit, too is even more compact and neatly truncates the rear of the machine, adding to the hard-edged sense of purpose. Trim side panels accentuate the minimalism, as does the steel rear mudguard/number plate mount.

Pillion and rider seat shaping has been revised to match the seat unit; seat height remains 810mm. There’s a USB Type-C socket located under the seat.

Premium technology – in the form of a brand new, 5-inch full colour TFT screen – uses optical bonding to improve visibility in bright sunlight. By sealing the gap between the cover glass and TFT screen with resin, glare is reduced and backlight transmittance improved. It’s customisable between Bar, Circle and Simple display patterns and also offers the smartphone connectivity of Honda RoadSync.

Honda RoadSync – through the a new simplified, easy-to-use, backlit 4-way toggle-switch on the left handlebar – allows straightforward, on-screen turn-by-turn navigation as well as the option (via a Bluetooth helmet headset) for the rider to make calls, listen to music or receive voice feedback of weather conditions. All an owner has to do is download the free Honda RoadSync app from either the Play Store or the App Store, connect to the CBR650R, and go.





Chassis

The steel diamond frame uses pressed swingarm pivot plates and twin elliptical spars with a rigidity balance specifically tuned (stiffer around the headstock and more flexible in the spar sections) to deliver excellent all-round handling characteristics with high levels of rider feedback. Rake is set at 25.5° with trail of 100mm and wheelbase of 1,450mm. Kerb weight is 209kg (E-Clutch 211kg).

Showa’s 41mm Separate Function Big Piston (SFF-BP) USD forks offer high-quality reaction. A pressure separation damper in one fork tube and spring mechanism in the other deliver high damping performance and lighter weight. Together with the use of a larger sized piston the result is increased feel, bump absorption and control. Adjustable for 10-stage spring preload, the single-tube monoshock operates directly on the curvaceous gravity die-cast aluminium swingarm.

Four-piston radial-mount front brake calipers work 310mm floating discs, and are paired with a single-piston rear caliper and 240mm disc. The ABS is a two-channel system.

Cast aluminium wheels mount 120/70-ZR17 and 180/55-ZR17 front and rear tires.





Engine

The 649cc, DOHC 16-valve engine is unchanged for 2024. It’s tuned to create the purest, most enjoyable mid-sized four-cylinder performance possible, with the classically fast ‘pick-up’ through the rev range and hard-hitting, high-revving top end for which Honda’s in-line’s fours are renowned. Peak power of 70kW arrives @ 12,000rpm with peak torque @ 63Nm delivered at 9,500 rpm. A 35kW option is available for A2 licence holders.

Direct cam actuation makes for a compact cylinder head; bore and stroke is set at 67mm x 46mm with compression ratio of 11.6:1. Iridium spark plugs are employed and twin air ducts – either side of the fuel tank – feed the airbox and produce a throaty intake roar.

Asymmetric piston skirts minimise bore contact and reduce friction. Ferrous spines on the outer surface of the cylinder sleeves reduce oil consumption (and friction) with improved heat transfer and a silent SV cam chain reduces frictional losses by using a Vanadium coating on its pins. Internal water channelling from cylinder head to cylinders does away with most of the exterior hoses.

The engine uses a compact internal architecture, stacked six-speed gearbox and starter layout with the cylinders canted forward 30°. An assist/slipper clutch eases upshifts while managing rear-wheel lock up under hard braking and rapid downshifts. Honda Selectable Torque Control (HSTC) manages rear wheel traction; it can be turned off should the rider choose.

Fuel consumption of 20.4km/l (WMTC mode) gives a range of over 300km from the 15.4L

fuel tank. EURO5 compliant, environmental efficiency has been updated with revisions to the ECU and catalyser, as well as the addition of an OBD2-2 sensor.





Accessories



A range of Genuine Honda Accessories are available for the CBR650R, available both as individual items and grouped in packs, and are ready to bolt straight on:



Racing Pack

Pumps up dynamism with Quickshifter (for the standard manual gearbox and clutch), colour matched Rear Seat Cover and 25mm higher Smoked Tall Screen. A carbon-look Tank Pad adds practical protection and proudly shows off a CBR logo. The pack is completed with an Oil Level Guage and transparent Side Tank Pads with the CBR logo.



Comfort Pack

Increased cold weather rideability from Heated Grips, plus flexible carrying capacity in the form of easy to attach 3L Tank Bag and 15L Rear Seat Bag



The line-up is completed with Wheel Stripes available in different colours. All the accessories featured in packs can also be purchased individually.









2024 Honda CBR650R – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $ TBA USD
Canada MSRP Price: $ TBA CDN
Europe/UK MSRP Price: £8599 GBP (On The Road inc 20% Vat)

TBA









2024 Honda CBR650R – Totalmotorcycle.com Canada Specifications/Technical Details

TBA







2024 Honda CBR650R – Totalmotorcycle.com Europe Specifications/Technical Details

ENGINE
Type Liquid-cooled 4-stroke 16-valve DOHC inline-4 cylinder
Engine Displacement (cm³) 649cc
Bore x Stroke (mm) 67.0mm x 46.0mm
Compression Ratio 11.6:1
Max. Power Output 70kW/12,000rpm
Max. Torque 63Nm/9,500rpm
Oil Capacity 2.7L
Noise Level (dB) Lwot – 78.3

Lurban – 74.3

FUEL SYSTEM
Carburation PGM-FI electronic fuel injection
Fuel Tank Capacity 15.4L
Fuel Consumption 20.4km/litre
ELECTRICAL SYSTEM
Starter Electric
Battery Capacity 12V/8.6AH
ACG Output 380W
DRIVETRAIN
Clutch Type Wet, multiplate disc
Transmission Type 6-speed
Final Drive Chain
FRAME
Type Steel diamond
CHASSIS
Dimensions (LxWxH) 2120 x 750 x 1,145mm
Wheelbase 1450mm
Caster Angle 25.5°
Trail 100mm
Seat Height 810mm
Ground Clearance 130mm
Kerb Weight 209kg (E-Clutch 211kg)
Turning radius  3.0m
SUSPENSION
Type Front 41mm Showa Separate Function front Fork Big Piston (SFF-BP) USD forks
Type Rear Monoshock damper with 10 stage adjustable preload, 43.5mm stroke
WHEELS
Rim Size Front Hollow section 6-spoke cast aluminium
Rim Size Rear Hollow section 6-spoke cast aluminium
Tyres Front 120/70ZR17 M/C (58W)
Tyres Rear 180/55ZR17 M/C (73W)
BRAKES
ABS System Type 2 channel; hydraulic dual disc 310mm front, hydraulic disc 240mm rear
INSTRUMENTS & ELECTRICS
Instruments 5-inch full colour TFT screen includes Honda RoadSync , Digital speedometer, digital bar graph tachometer, dual trip meter, digital bar graph fuel gauge, gear position and upshift indicator, digital clock
Headlight LED
Taillight LED



# Please note that the figures provided are results obtained by Honda under standardised testing conditions prescribed by WMTC. Tests are conducted on a rolling road using a standard version of the vehicle with only one rider and no additional optional equipment. Actual fuel consumption may vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors.







Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
