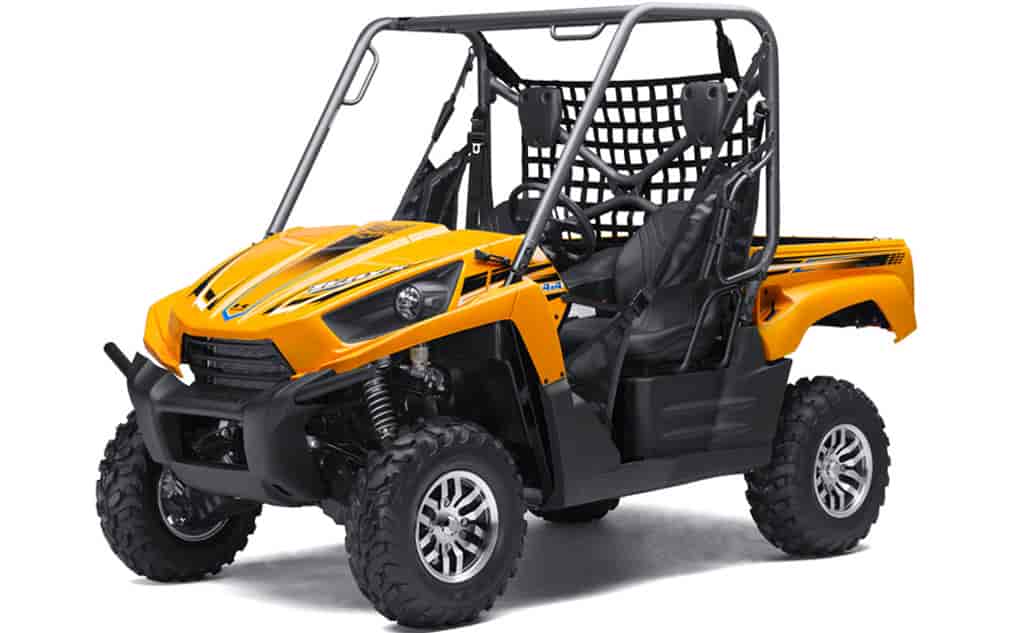

2013 Kawasaki Teryx 750 FI 4x4 Sport
2013 Kawasaki Teryx 750 FI 4×4 Sport

2013 Kawasaki Teryx 750 FI 4x4 Sport
2013 Kawasaki Teryx 750 FI 4×4 Sport

2013 Kawasaki Teryx 750 FI 4×4 Sport Review

2013 Kawasaki Teryx 750 FI 4×4 Sport

This Aggressive Teryx Delivers Premium Off-Road Performance

The performance flagship of the Kawasaki Teryx side x side lineup, the Teryx™ 750 FI 4×4 Sport is ready for aggressive use on the toughest trails. With its lightweight alloy wheels controlled by gas-charged shocks with piggyback reservoirs, the Teryx Sport offers superior levels of wheel and chassis control, even through rough terrain. The shocks are also fully adjustable for spring preload, compression and rebound damping, meaning drivers can get the most out of suspension by tuning it to their desired settings. That extra tunability and control translates into more four-wheeling fun.

The Teryx Sport’s 749cc 90-degree 8-valve V-twin is plenty powerful and also supremely smooth, thanks to the 90-degree configuration’s perfect primary balance. This design offers unmatched smoothness at any rpm – and an exotic exhaust note that sets the Teryx apart from lesser Side x Sides. An ample cooling system with an oversize cooling fan and a large diameter hose help make the engine extra reliable, even in the toughest conditions.

The Teryx Sport’s high-end suspension is easy to appreciate even when you’re not moving. All four corners are equipped with premium quality aluminum-bodied gas-charged piggyback-reservoir shocks that are fully adjustable for spring preload, compression and rebound damping. The result is maximum tunability and terrain following capability for its lightweight aluminum wheels. Each wheel is a whopping two pounds lighter a standard Teryx wheel, and this 8-pound reduction in rotating and unsprung weight is easy to feel at any speed.

The Teryx Sport’s advanced digital fuel-injection system includes functions for automatic elevation compensation, automatic idle adjustment and easy, choke-free starting via a sophisticated array of sensors for inlet air pressure, throttle position, crankshaft position, rpm, and water temperature. There’s also an ignition cut-out, which won’t allow the Teryx Sport to be ridden away when the parking brake is engaged. This braking system technology complements the Teryx’s CVT Belt Protection System, which, among other good things, automatically retards ignition timing if the system detects engine operation at high rpm for more than two seconds while the rear wheels are motionless (i.e., the belt is slipping), and warns the rider via a flashing belt warning lamp on the dash.

All that electronically enhanced performance is perfectly packaged within an advanced chassis that’s narrow enough to navigate the gnarliest trails (and fit in a standard pickup bed), yet wide enough to offer a roomy cab and an excellent ride. The wide-track design frame uses large-diameter, thin-walled tubing to combine tremendous rigidity with light weight. And the upper frame adds great looks and protection, while providing enough room inside to fit two full-sized adults in a comfortable but supportive pair of bucket seats with retractable three-point seat belts.

Once comfortably strapped in, the rider can choose 2WD or 4WD with the flip of a switch, and Kawasaki’s super-efficient continuously variable transmission takes it from there, to practically anywhere you feel like going. A cockpit-adjustable variable front differential control even lets you fine-tune front-end traction. To help keep the driver’s hands free to operate the controls of this high performance Teryx, Kawasaki has included a retractable dual cup holder because with Teryx performance you’ll want to hold-on with both hands!

Long-travel independent suspension, fully adjustable gas-charged shocks at all four corners, a rear stabilizer bar and mid-ship engine placement all work together to tame tough trails, while a high-performance long A-arm double-wishbone suspension design reduces camber changes for sharp steering at all times. When it’s time to slow down, dual discs up front and a high-tech sealed oil-bath braking unit out back get the job done with power to spare, while Kawasaki Engine Braking Control assists with engine braking when driving down hills. Custom 26-inch Maxxis tires designed for the Teryx’s characteristics are the final ingredient in its amazingly potent handling package.

A large selection of authentic Kawasaki Accessories are available through Kawasaki dealers for the 2013 Teryx 750 FI 4×4 Sport side x side. As with all off-highway vehicle recreation, Kawasaki encourages Side x Side drivers to drive responsibly and to respect the environment.


2013 Kawasaki Teryx 750 FI 4×4 Sport Key Features

Exclusive Teryx 750 FI 4×4 Sport features:
• High-performance cast aluminum wheels look great and remove approximately two pounds of unsprung weight from each corner, resulting in a performance boost you can feel
• High-performance aluminum-bodied gas-charged piggyback-reservoir shocks at all four corners are fully adjustable for spring preload, compression and rebound damping, to help provide maximum grip and a highly tunable ride


2013 Kawasaki Teryx 750 FI 4×4 Sport Features and Benefits

749cc V-twin
• Teryx’s liquid-cooled, 749cc SOHC, 4-valve-per-cylinder fuel-injected, 90-degree V-twin engine cranks out class-leading power
• Oversquare (85 x 66mm) engine with 4-valve heads contributes to the Teryx’s superb acceleration and torque
• The 90-degree V-twin configuration offers perfect primary balance, resulting in low engine vibration
• Aluminum cylinders are Electrofusion-plated for light weight, long wear and excellent heat dispersion
• Engine can be started in any gear, as long as the brake pedal is depressed
• Kawasaki Engine Brake Control helps to slow the Side x Side on down hills
• The engine is positioned mid-ship, providing optimum front/rear balance and optimum traction
• Ducts located by the cargo bed direct cooling air to the engine, while a heavy-duty liquid-cooling system keeps temperatures under control in the harshest conditions
• Large-capacity radiator is compact and placed high in the chassis for protection against mud and debris; a larger cooling fan increases cooling capacity in slow going
• Ignition cut-out feature protects the brake system by preventing riding with the parking brake on
• Coolant reserve tank is located under the front cover for easy maintenance

Digital Fuel Injection system
• Digital Fuel Injection enhances throttle response and automatically adjusts for changes in temperature and elevation for optimum performance in a wide range of environments
• The fuel injection system is controlled by a 32-bit CPU and continually monitors coolant temperature, air intake temperature, throttle position, air intake pressure, vehicle speed and crankshaft angle to automatically meter out the ideal amount of fuel via two 34mm throttle bodies for extremely stable power delivery – regardless of conditions
• DFI system permits easy engine starting at low temperature and utilizes an Automatic Idle Speed Control and Automatic Fast Idle function to help ensure smooth engine warm up
• The high-pressure fuel pump located inside the tank features a unique reservoir chamber at the bottom of the fuel pump that ensures air does not get into the fuel system
• Specific Teryx-sized throttle bodies and optimized ignition timing have maximized low and mid-range torque and ensure excellent response at high rpm

Kawasaki Automatic Power-Drive System CVT
• Featuring high and low ranges, plus reverse, this advanced continuously variable transmission provides a direct feel from the engine and instantaneous acceleration – ideal characteristics for sport riding
• Transmission uses a high-grade, super-durable Kevlar-impregnated belt designed to handle the high output of the engine. The drive converter shaft is hard chrome-finished for added durability
• The CVT Belt Protection System helps prevent slippage, improves rocky terrain performance and reduces belt overloading by using Throttle Position Sensor (TPS) data to compare throttle position with wheel speed
• Unnecessary belt wear is minimized with a system that reduces engine speed if the engine operates at high rpm for more than two seconds while the rear wheels are motionless
• A large intake duct, located to keep water and debris out, provides plenty of cooling air to the CVT
• Heat shielding on the exhaust pipe below the intake duct minimizes intake temperatures

Sport-focused Suspension
• High-performance, aluminum bodied, fully adjustable, piggyback reservoir, gas-charged Kayaba shocks provide excellent fade-resistant damping performance in the toughest conditions while providing 7.5 inches of plush, controlled wheel travel
• Independent rear suspension provides an ideal balance of rider comfort and handling at high speeds
• Rear torsion bar helps minimize body roll

Lightweight Aluminum Wheels and Large 26-inch Tires
• Lightweight cast aluminum wheels offer great looks and cut unsprung weight by two pounds per wheel
• 26-inch MAXXIS tires developed specifically for the Teryx help provide great traction and handling

Selectable Four-wheel-drive / Variable Front Differential Control
• Selecting two
• or four-wheel-drive is as easy as pressing a switch located on the dash; electrically selectable 2WD/4WD system engages instantly
• Limited-slip front differential reduces steering effort under normal four-wheel drive operation, while Variable Front Differential Control permits the rider to distribute torque equally to left and right front wheels for maximum traction via a hand lever located between the seats
• Rear gear case keeps rear wheels locked and turning together for maximum forward thrust

Wide-body Chassis
• Large-diameter thin-walled tubular steel frame combines high rigidity, light weight and mid-engine placement – a perfect combination for performance riding
• Tubular cab frame meets SAE J1194, 7.1.1, 7.1.2, 7.4, and 7.5, requirements as a roll-over protective structure (ROPS)
• Performance-focused suspension is designed for high-performance riding
• Wide track helps provide a great ride, but unit is narrow enough to fit in a standard pickup truck bed
• Chassis has 11.6 inches of ground clearance, which strikes a perfect compromise between great low-center-of-gravity handling and the ability to clear tough off-road obstacles
• Narrow frame concept maximizes the length of the front and rear suspension’s lower A-arms for excellent road-handling performance and minimal geometry change throughout the suspension’s travel
• Chassis serves up a near-perfect balance of bump absorption and precise steering
• A hinged, forward-tilting front hood and headlight assembly highlights aggressive styling and allows quick access to the radiator and front suspension components for easy maintenance and suspension tuning
• The tilt bed’s frame is engineered with extra rigidity for a high degree of durability

High-performance Brakes
• Dual front 200mm disc brakes gripped by rigid-mount 27mm twin-piston calipers provide powerful, fade-free braking and solid feel. The discs are tucked inside the wheels, where they’re protected from debris
• Kawasaki’s sealed, oil-bathed multi-disc rear brake system provides maximum stopping power in almost any condition along with reduced maintenance thanks to its being completely sealed
• The sealed rear brake’s compact design contributes to excellent ground clearance

Tilting Cargo Bed
• With 500-pound capacity, tilting cargo bed, tie-down hooks in all four corners, a standard cargo net and generous dimensions, the Teryx is as functional as it is fun to drive
• Gas-assist struts help facilitate bed cleaning and maintenance
• Reinforced bed frame offers maximum rigidity for excellent durability

• Making maximum use of its cockpit space, the Teryx provides plenty of shoulder and legroom to comfortably accommodate two adults
• Form-fitting bucket seats and retractable three-point seatbelts help provide a comfortable ride
• The padded steering wheel is positioned low for sport riding and provides additional driver protection
• Retractable dual cup holder lets driver and passenger keep both hands free for driving or hanging-on, while they exploit the Teryx Sport’s impressive performance

Multi-Function Digital Display
• Standard on all models, the Multi-Function Display includes a digital speedometer (mph or kph), clock, dual trip meters plus 2WD/4WD indicator, water temperature and fuel-injection warning indicators, digital fuel gauge, hour meter, parking brake indicator, CVT belt temperature warning, neutral, reverse and low oil pressure warning lights

• Thermoplastic Olefin bodywork has a beautiful high-gloss finish that’s more scratch-resistant than polyethylene—so it stays great-looking longer
• Engine and undercarriage guards provide maximum protection from rocks and debris
• Teryx’s battery and electric parts are located high and far away from water or mud
• Dual 40W headlights and 8/27W dual taillights mean you’ll see and be seen

Range / Transportability
• Large, 7.4 gal. (28L) fuel tank and excellent fuel efficiency provide the range campers and hunters need to get deep into the bush – and back again
• Even with its wide track and large tires, the Teryx is compact enough to fit in the bed of most full-size pickup trucks

2013 Kawasaki Teryx 750 FI 4×4 Sport – Unitied States of America Specifications / Technical Details
USA MSRP: $12,599 USD

Engine Liquid-cooled, 90-degree, four-stroke V-twin

Valve System SOHC, four valves per cylinder

Displacement 749cc

Starting System Electric

Bore x Stroke 85 x 66mm

Compression Ratio 8.8:1

Fuel System DFI® with two Mikuni 34mm throttle bodies

Ignition Digital DC-CDI

Transmission Continuously variable belt-drive transmission with high and low range, plus reverse, and Kawasaki Engine Brake Control

Final drive Selectable four-wheel drive with Variable Front Differential Control, shaft

Frame Large diameter, thin-walled, high-tensile tubular steel

Front suspension / wheel travel Adjustable dual A-arm with aluminum-body gas-charged shocks with piggy-back reservoirs, fully adjustable preload, and adjustable rebound/compression damping / 7.5 in.

Rear suspension / wheel travel Adjustable Independent Rear Suspension (IRS) with reservoir-equipped gas-charged shocks with adjustable preload and adjustable rebound/compression damping / 7.5 in.

Front Tire Size Maxxis 26×8-12

Rear Tire Size Maxxis 26×10-12

Front brakes Dual hydraulic discs with 2-piston calipers

Rear Brakes Sealed, oil-bathed, multi-disc

Overall length 116.3 in.

Overall width 58.5 in.

Overall height 75.8 in.

Wheelbase 76.0 in.

Ground clearance 11.6 in.

Lighting (2) 40W headlights, (2) 8W taillight, 27W stoplight

Cargo Bed Capacity 500 lbs., 44.2 W x 32.7 L x 11.1 in. H

Towing Capacity 1,300 lbs.

Curb weight 1,388.5 lbs.

Fuel capacity 7.4 gal.

Instruments Multi-Function Digital Meter with speedometer, fuel gauge, clock hour meter, odometer, dual trip meter and parking brake, R/N/P/4WD, water temp and oil pressure indicators

Color Choices Sunrise Yellow

Warranty 6 months

Good Times™ Protection Plan 12, 24,36, & 48 months


2013 Kawasaki Teryx 750 FI 4×4 Sport – Canada Specifications / Technical Details
Canadian MSRP: $15,199 CDN

Type 4-stroke, 90º V-Twin
Displacement 749cc
Bore and Stroke 85.0 x 66.0 mm
Cooling Liquid
Compression Ratio 8.8:1
Valve System SOHC, 4 valves per cylinder
Ignition Electric
Lubrication Forced lubrication (wet sump)
Fuel System Fuel injection: 34 mm x 2 (Mikuni)
Electrical 12-volt DC; 12 amp-hour battery, alternator
Exhaust Stainless steel Muffler with USFS-approved spark arrestor


Transmission Dual range CVT with reverse
Final Drive 2WD/4WD, shaft
Primary Reduction Ratio 3.200 ~ 0.721 (belt converter)
Gear Ratio: Forward (High) 3.549 (30/26 x 29/18 x 21/11)
Gear Ratio: Forward (Low) 5.536 (36/20 x 29/18 x 21/11)
Gear Ratio: Reverse 4.614 (16/12 x 18/16 x 29/18 x 21/11)
Final Reduction Ratio 4.375 (35/8)


Type Ladder type, tubular carbon steel
Wheel Travel: Front 190 mm (7.48 in.)
Tires: Front 26 x 8-12 Maxxis Tubeless
Wheel Travel: Rear 190 mm (7.48 in.)
Tires: Rear 26 x 10-12 Maxxis Tubeless
Caster (Rake) 2.2º
Trail 11 mm (0.43 in.)
Steering Type Rack and pinion
Steering Angle (Left, Right) 44º (IN) / 32º (OUT), 44º (IN) / 32º (OUT)


Suspension, Front Double wishbone with aluminium-body gas-charged shocks with piggy-back reservoirs, fully adjustable preload, stepless adjustable (5 turns) compression damping, and stepless adjustable (2.5 turns) rebound damping
Suspension, Rear Double wishbone with reservoir-equipped gas-charged shocks with fully adjustable preload, 20-way compression damping, and stepless adjustable (3 turns) rebound damping


Front: Type Dual 200 mm discs with 2-piston calipers
Rear: Type Enclosed wet multi-plate
Parking: Type Enclosed wet multi-plate


Overall Length 2,955 mm (116.3 in.)
Overall Width 1,485 mm (58.5 in.)
Overall Height 1,925 mm (75.8 in.)
Wheelbase 1,930 mm (76.0 in.)
Tread (Front/Rear) 1,225 mm (48.2 in.) / 1,200 mm (47.2 in.)
Ground Clearance: At Centre of Chassis 295 mm (11.6 in.)
Seat Height 780 mm (30.7 in.)
Curb Mass** 627 kg (1,383 lbs.)
Fuel Capacity 28 litres (6.2 gal.)
Cargo Bed (inside) L x W x H 830 x 1,120 x 280 mm (32.7 x 44.1 x 11.1 in.)
** Includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90% of capacity) and tool kit (if supplied)


Maximum Power‡ 34 kW {46 PS} @ 6,500 rpm
Maximum Torque‡ 57 N·m {5.8 kgƒ·m} @ 5,000 rpm
Minimum Turning Radius Diff. Mode 2WD 4.2 m (13.8 ft), Locked-Axle Mode 4WD 5.0 m (16.4 ft)
Maximum Cargo Bed Load 227 kg (500 lbs.)
Seating Capacity 2
Towing Capacity 591 kg (1,303 lbs.)
‡ Power / Torque figures measured at the crankshaft.

Warranty 6 months warranty


Good Times Protection Plan 24 or 36 months (Kawasaki GTPP coverage begins after the standard limited warranty expires)


Sunrise Yellow
KRF750SDF $15,199

The Manufacturer’s Suggested Retail Price does not include freight, pre-delivery inspection or applicable taxes. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice.

The amount indicated as “Your price” may include an optional instant Mega Cash credit that is deducted from the manufacturer’s suggested retail price before taxes. This promotion is time limited and certain conditions will apply. See your dealer for complete details. Offer not available on financed purchases and cannot be combined with any other special offers. The final price is at the discretion of the dealer. Prices and Specifications are subject to change without prior notice.

The specifications mentioned here apply to and have been achieved by production models under standard operating conditions. We intend only to give a fair description of the vehicle and its performance capabilities but these specifications may not apply to every machine supplied for sale. Kawasaki Heavy Industries, Ltd. reserves the right to alter specifications without prior notice. Equipment illustrated and specifications may vary to meet individual markets. Available colours may vary by market.

Specifications, appearance, and price of product are subject to change without notice.
