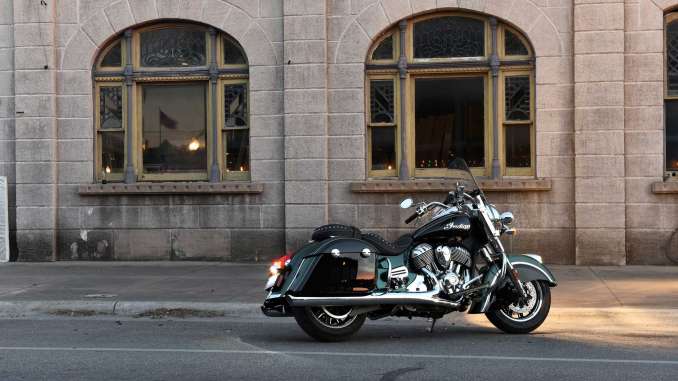

The Indian Springfield® features ABS, keyless ignition and remote-locking bags. For 2018, Indian® introduces a new color option: Metallic Jade over Thunder Black. Thunder Black and Steel Gray over Burgundy Metallic will continue to be available.
2018 Indian Springfield Totalmotorcycle.com Key Features
Getting Lost Is The Best Way To Find Yourself.
2018 Indian Springfield Totalmotorcycle.com Features and Benefits
You. The road. Nothing else. Just the rumble of the Thunder Stroke® 111 V-Twin. That’s what the Indian Springfield® delivers, along with modern amenities like keyless ignition, remote-locking hard saddlebags and a quick release windshield. Lose the map. Connect with the road. And your soul.
- Thunder Stroke® 111: Designed from the ground up, the Thunder Stroke® 111 is a powerful, award-winning engine with legendary features inspired by the Power Plus motor of the 1940s: Multi-directional finned valve covers; Downward firing exhaust; Large, parallel push-rod tubes; Organic, asymmetric fin styling; Right-hand drive; Right-hand cam cover; Classic 2/3 head-to-cylinder neck down
- Touring Chassis: A unique chassis with a 25° rake delivers unmatched handling and balance, even when fully loaded. Without the added weight of a fairing, the Indian Springfield can carve corners like no other bike in its class.
- Remote-Locking Hard Saddlebags: Your cargo is protected inside convenient, spacious hard saddlebags with weatherproof seals. You can even lock them remotely using a console-mounted button, or via the bike’s key fob.
- Trunk-Compatible Frame: The Indian Springfield is equipped with the most essential touring features, including a trunk-compatible frame that allows for enhanced passenger comfort and extra storage.
- Chrome Headdress: The most powerful icon in motorcycling. Since 1947, the illuminated headdress has graced the front fender of nearly every Indian Motorcycle, guiding the way from legend to legend.
- ABS Brakes: With ABS brakes, you’ll ride with confidence, knowing you can brake under control in any situation.
- Driving Lights: With standard front driving lights, the Indian Springfield illuminates the road for safe riding, day or night.
- Quick Release Windshield: This stylish windshield provides outstanding wind and weather protection to make every ride more comfortable. With Quick Release technology, it can be installed or removed in less than a minute, with no tools.
- 119 ft-lbs of Torque: The Thunder Stroke® 111 produces 119 ft-lbs of torque with extraordinary power at low RPM, so you can accelerate effortlessly with power to spare in every gear.
- Internally Wired Handlebars: This high-profile area features all-chrome hand controls. Plus, all of the wiring is routed inside the handlebars for a clean, premium-quality look.
- Keyless Ignition: Never fumble for your key again. With the proximity fob in your pocket, just climb on, press the start button and ride away. Misplace your fob? Simply enter your personal security code and go.
- Cruise Control: Automotive-quality cruise control is easy to set and adjust for smooth, relaxed highway cruising.
- Modern Yet Timeless Instruments: We brought this heritage-inspired instrument panel into the 21st century, while maintaining its timeless style.
- Chrome Hand Controls: Chrome is the new standard, and you’ll find it from end to end on the Indian Springfield.
- Premium Genuine Leather: This comfortable two-up seat features premium grade genuine leather designed to withstand the elements and retain its natural beauty. Unique to Springfield, stud and stitch details complete the look.
- Indian Motorcycle® Badging: The logos on this bike are powerful, stylish and iconic. No other brand has such legendary identification. For over 115 years, Indian Motorcycle® has stood for the ultimate in style, performance and power.
- Cast Aluminum Frame: This cast aluminum frame is lightweight yet exceptionally strong, providing excellent low-speed handling, and confidence-inspiring stability on the highway.
- Chrome Highway Bars: Chrome front and rear highway bars provide premium-quality style and protection that can be accessorized with leather wraps or highway pegs.
2018 Indian Springfield – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $20,999 to $22,099 USD
ENGINE
Engine Type
Thunder Stroke® 111
Displacement
111 cu in (1811 cc)
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5 : 1
Electronic Fuel Injection System
Closed Loop Fuel Injection / 54 mm Bore
DRIVETRAIN
Primary Drive
Gear Drive Wet Clutch
Drive/Driven Clutch
Wet, Multi-Plate
Final Drive
2.2 : 1
PERFORMANCE
Peak Torque
119 ft-lbs (161.6 Nm)
Peak Torque RPM
3000 rpm
GEAR RATIO (OVERALL)
1st
9.403 : 1
2nd
6.411 : 1
3rd
4.763 : 1
4th
3.796 : 1
5th
3.243 : 1
6th
2.789 : 1
SUSPENSION
Suspension: Front – Type/Travel
Telescopic Fork / 4.7 in (119 mm) – Cartridge Type
Front Fork Tube Diameter
46 mm
Suspension: Rear – Type/Travel
Single Shock w/ Air Adjust / 4.5 in (114 mm)
CHASSIS
Brakes/Front
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Brakes/Rear
Single / 300 mm Floating Rotor / 2 Piston Caliper
Wheels/Front
Cast 16 in x 3.5 in
Wheels/Rear
Cast 16 in x 5 in
Tires/Front
Dunlop® Elite 3 130/90B16 73H
Tires/Rear
Dunlop® Elite 3 Multi-Compound 180/60R16 80H
Exhaust
Split Dual Exhaust w/ Cross-Over
DIMENSIONS
Wheelbase
67.0 in (1701 mm)
Seat Height
26.0 in (660 mm)
Ground Clearance
5.6 in (142 mm)
Overall Height
56.8 in (1442 mm)
Overall Length
101.7 in (2583 mm)
Overall Width
39.0 in (990 mm)
Rake
25°
Trail
5.2 in (133 mm)
Fuel Capacity
5.5 gal (20.8 l)
GVWR
1385 lbs (628 kg)
Weight (Empty Tank / Full of Fuel)
818 lbs / 850 lbs (371 kg / 386 kg)
FEATURES
Color / Graphics
Thunder Black
STANDARD
Standard Equipment
ABS; Cast Aluminum Frame with Integrated Air-Box; Cruise Control; Highway Bar; Indian® Script Tank Badge; Keyless Ignition; Quick Release Windshield; Quick Release Remote-Locking Hard Saddlebags, Tire Pressure Monitoring; Light Bar
ELECTRICAL
Lights
Headlight; Driving/Tail/Brake Lights; Turn Signals; License Plate Light; Speedometer with Indicator Lights
Gauges
Tank Mounted Electronic Speedometer with Odometer; Dual Tripmeters; Digital Tachometer; Ambient Air Temperature; Fuel Range; Average Fuel Economy; Battery Voltage; Gear Position Display; Real-Time Clock; Vehicle Trouble Code Read-Out; Heated Grip Level (If Heated Grips Installed); Low Engine Oil Pressure; 9 LED Telltale Indicators: Cruise Control Enabled, Cruise Control Set, Neutral, High Beam, Turn Signal, ABS, Check Engine, and MPH or Km/H Unit Designation; Tank Mounted Electronic Fuel Gauge with Low Fuel LED Indicator
2018 Indian Springfield – Totalmotorcycle.com Canadian Specifications/Technical Details
Canada MSRP Price: $25,299 to $26,399 CDN
ENGINE
Engine Type
Thunder Stroke® 111
Displacement
111 cu in (1811 cc)
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5 : 1
Electronic Fuel Injection System
Closed Loop Fuel Injection / 54 mm Bore
DRIVETRAIN
Primary Drive
Gear Drive Wet Clutch
Drive/Driven Clutch
Wet, Multi-Plate
Final Drive
2.2 : 1
PERFORMANCE
Peak Torque
119 ft-lbs (161.6 Nm)
Peak Torque RPM
3000 rpm
GEAR RATIO (OVERALL)
1st
9.403 : 1
2nd
6.411 : 1
3rd
4.763 : 1
4th
3.796 : 1
5th
3.243 : 1
6th
2.789 : 1
SUSPENSION
Suspension: Front – Type/Travel
Telescopic Fork / 4.7 in (119 mm) – Cartridge Type
Front Fork Tube Diameter
46 mm
Suspension: Rear – Type/Travel
Single Shock w/ Air Adjust / 4.5 in (114 mm)
CHASSIS
Brakes/Front
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Brakes/Rear
Single / 300 mm Floating Rotor / 2 Piston Caliper
Wheels/Front
Cast 16 in x 3.5 in
Wheels/Rear
Cast 16 in x 5 in
Tires/Front
Dunlop® Elite 3 130/90B16 73H
Tires/Rear
Dunlop® Elite 3 Multi-Compound 180/60R16 80H
Exhaust
Split Dual Exhaust w/ Cross-Over
DIMENSIONS
Wheelbase
67.0 in (1701 mm)
Seat Height
26.0 in (660 mm)
Ground Clearance
5.6 in (142 mm)
Overall Height
56.8 in (1442 mm)
Overall Length
101.7 in (2583 mm)
Overall Width
39.0 in (990 mm)
Rake
25°
Trail
5.2 in (133 mm)
Fuel Capacity
5.5 gal (20.8 l)
GVWR
1385 lbs (628 kg)
Weight (Empty Tank / Full of Fuel)
818 lbs / 850 lbs (371 kg / 386 kg)
FEATURES
Color / Graphics
Thunder Black
STANDARD
Standard Equipment
ABS; Cast Aluminum Frame with Integrated Air-Box; Cruise Control; Highway Bar; Indian® Script Tank Badge; Keyless Ignition; Quick Release Windshield; Quick Release Remote-Locking Hard Saddlebags, Tire Pressure Monitoring; Light Bar
ELECTRICAL
Lights
Headlight; Driving/Tail/Brake Lights; Turn Signals; License Plate Light; Speedometer with Indicator Lights
Gauges
Tank Mounted Electronic Speedometer with Odometer; Dual Tripmeters; Digital Tachometer; Ambient Air Temperature; Fuel Range; Average Fuel Economy; Battery Voltage; Gear Position Display; Real-Time Clock; Vehicle Trouble Code Read-Out; Heated Grip Level (If Heated Grips Installed); Low Engine Oil Pressure; 9 LED Telltale Indicators: Cruise Control Enabled, Cruise Control Set, Neutral, High Beam, Turn Signal, ABS, Check Engine, and MPH or Km/H Unit Designation; Tank Mounted Electronic Fuel Gauge with Low Fuel LED Indicator
2018 Indian Springfield – Totalmotorcycle.com European Specifications/Technical Details
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)
TBA
Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).
