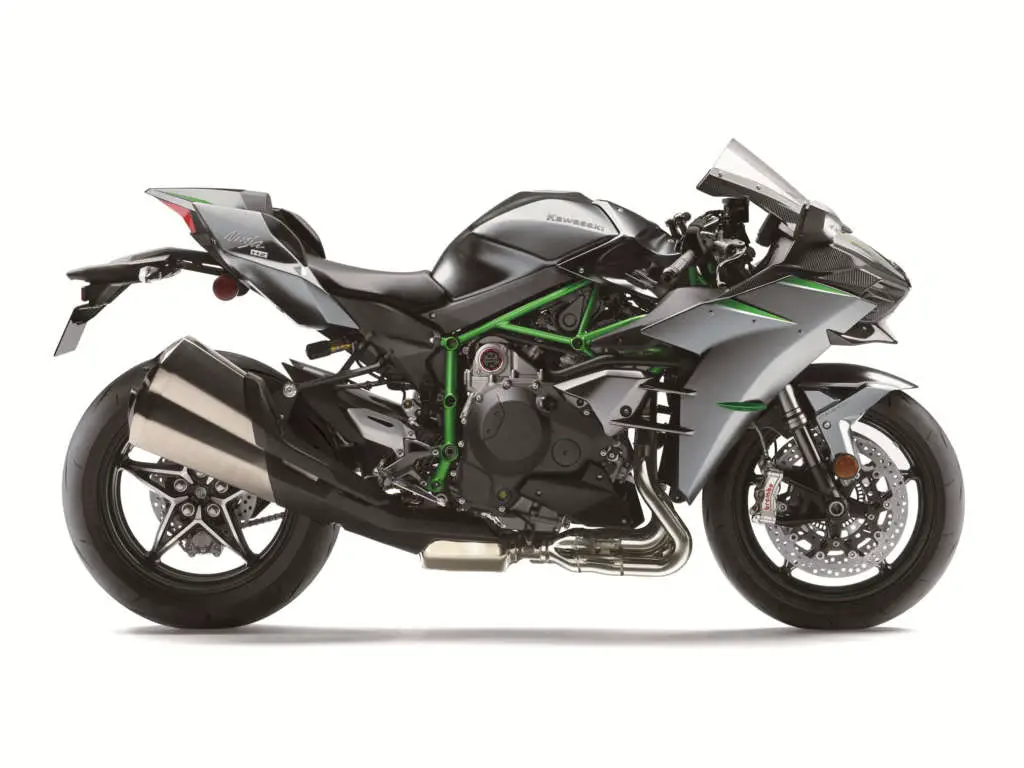

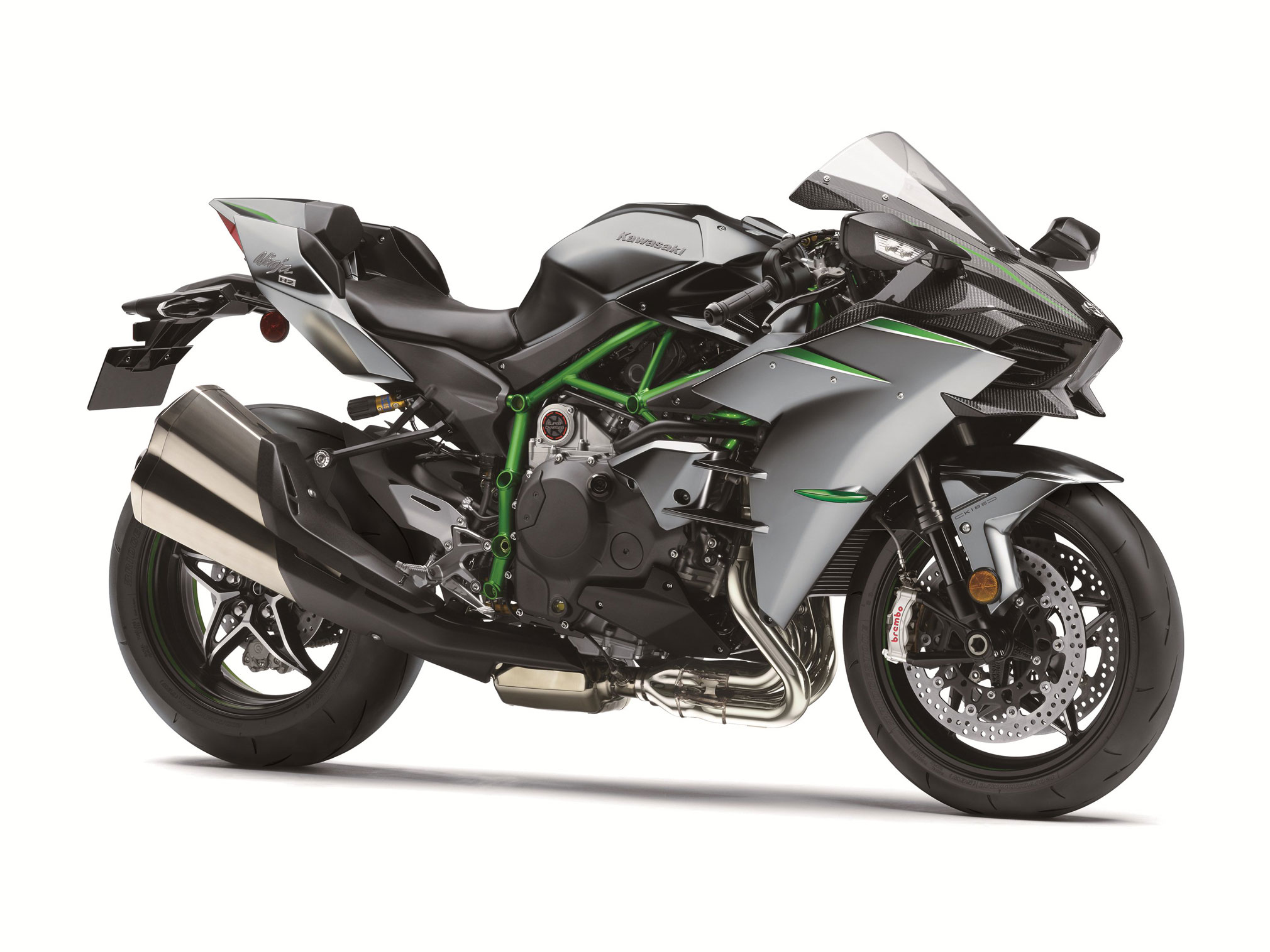

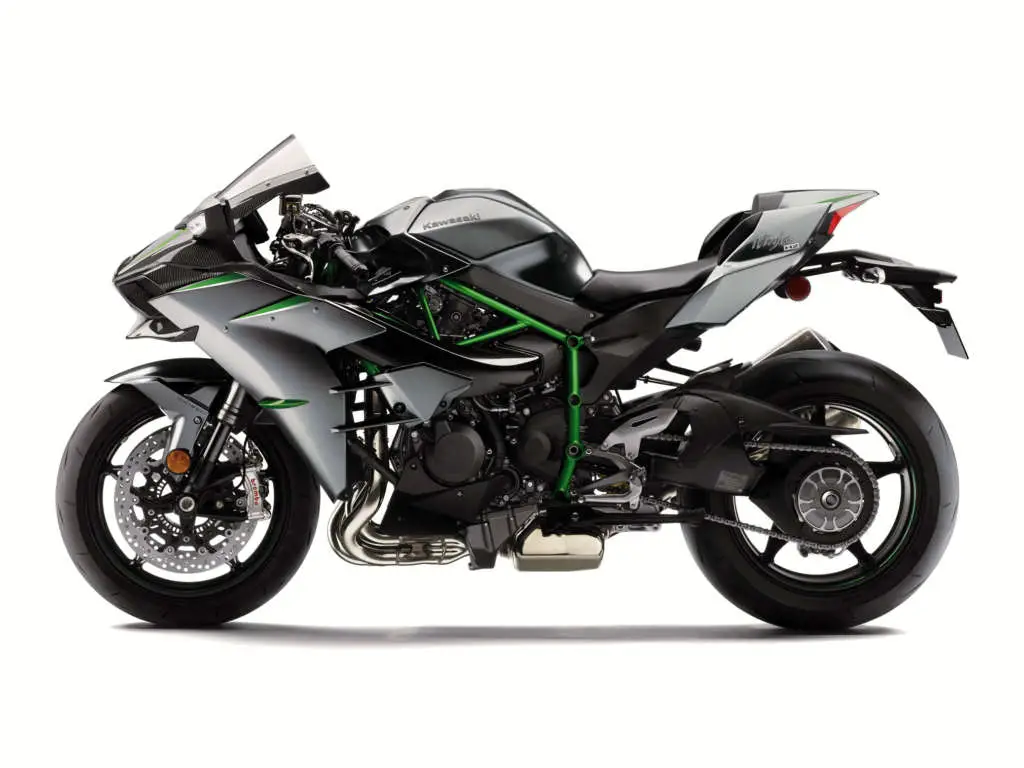

2020 Kawasaki Ninja H2 Carbon

2020 Kawasaki Ninja H2 Carbon 2020 Kawasaki Ninja H2 Carbon 2020 Kawasaki Ninja H2 Carbon 2020 Kawasaki Ninja H2 Carbon 2020 Kawasaki Ninja H2 Carbon

2020 Kawasaki Ninja H2 Carbon : ANOTHER LEAP FORWARD.

2020 Kawasaki Ninja H2 Carbon.

The Kawasaki Ninja H2™is designed to be the ultimate performance street-legal motorcycle, built using state of the art technologies with cooperative development across Kawasaki’s high-performance motorcycle, aerospace and gas turbine divisions.

The 2020 Ninja H2 and H2 Carbon have done it again with another leap forward in power and technology. The 998cc Supercharged engine now puts out even more power, the next generation Brembo Stylema calipers produce unbelievable stopping power, and a full TFT dashboard with Bluetooth connectivity ensures you are connected in ways you never thought possible. It even has highly durable paint that heals itself from minor scratches in the sun. Adding these to an already awe-striking package, it’s no wonder that the H2 is Built Beyond Belief.



Street legal hypersport performance
KYB AOS-II front fork and Öhlins TTX36 rear shock
Kawasaki Quick Shifter (KQS)
Kawasaki TRaction Control (KTRC–9 modes)
All LED lighting
Carbon fiber upper cowl



2020 Kawasaki Ninja H2 Carbon Totalmotorcycle.com Key Features




The Kawasaki Ninja H2 line of motorcycles have truly built and defined the hypersport motorcycle category, the Ninja H2™R, Ninja H2™, and Ninja H2™ Carbon are the bar by which all others are judged. Unrivaled in power, performance, technology, and craftsmanship, the Kawasaki Supercharged H2 line are some of the most sought after motorcycles available today. The 2020 Kawasaki Ninja H2 Carbon, Ninja H2, and Ninja H2 Carbon are available for order now through your local Kawasaki dealership.


Ninja H2™R

The Ninja H2R is the unrestricted, track only hypersport, which is truly Built Beyond Belief. Featuring a 998cc inline four-cylinder engine, proprietary supercharger, lightweight trellis frame, compact superbike dimensions, aerodynamic bodywork, and a rigid single-sided swingarm, this track-only motorcycle sits at the head of the class in technological development. The unprecedented power output of the 310 PS* supercharged Ninja H2R is made possible only through a system of finely-tuned and carefully crafted high-quality components. The 2020 Ninja H2R is available in Mirror Coated Matte Spark Black.


Ninja H2™ and Ninja H2™ Carbon

The Kawasaki Ninja H2 and Ninja H2 Carbon feature a 998cc inline four-cylinder engine, proprietary supercharger, lightweight trellis frame, compact superbike dimensions, aerodynamic bodywork, and a rigid single-sided swingarm. The Ninja H2 and H2 Carbon motorcycles produce 231 PS* to create unprecedented power and remarkable acceleration on a street legal machine. The heavy growl of the boosted liter-class engine is a sound the streets won’t soon forget. Both models feature high-spec Brembo calipers and Kawasaki’s highly durable paint. In the cockpit, a TFT (thin-film transistor) color instrumentation display with four selectable display modes, as well as smartphone connectivity using Bluetooth technology and the new RIDEOLOGY THE APP. Bringing all this power and technology to the pavement are new Bridgestone RS11 tires. The Ninja H2 Carbon was developed as a special, limited edition model that features beautiful, strong and lightweight carbon fiber front bodywork and special insignia. The 2020 Ninja H2 is available in Mirror Coated Spark Black, while the 2020 Ninja H2 Carbon is offered in Mirror Coated Matte Spark Black / Candy Flat Blazed Green with its clear coated raw carbon fiber fairing on display.


Order Period

The unmatched attention to detail and precision performance of the H2 line of motorcycles are available in each of the three models in limited quantities. For 2020, the order period for the Ninja H2R, Ninja H2, and Ninja H2 Carbon is open from October 7, 2019 until December 20, 2019, don’t miss your chance to own one of the most prestigious and legendary hypersport motorcycles ever made by heading into your local Kawasaki dealer to place your order.




*This engine is rated in PS power units. Gross Power is different than net power. Net power is generally less than gross, but varies with engine specifications. Gross power is a general measure to compare one engine to another, as to its overall capacity. Your specific engine net power rating will be different and most likely less than the rated power.



Kawasaki Heavy Industries, Ltd. (KHI) started full-scale production of motorcycles over a half century ago. The first Kawasaki motorcycle engine was designed based on technical know-how garnered from the development and production of aircraft engines, and Kawasaki’s entry into the motorcycle industry was driven by the company’s constant effort to develop new technologies. Numerous new Kawasaki models introduced over the years have helped shape the market, and in the process have created enduring legends based on their unique engineering, power, design and riding pleasure. In the future, Kawasaki’s commitment to maintaining and furthering these strengths will surely give birth to new legends.

Kawasaki Motors Corp., U.S.A. (KMC) markets and distributes Kawasaki motorcycles, ATVs, side x sides, and JET SKI® watercraft through a network of almost 1,100 independent retailers, with close to an additional 7,400 retailers specializing in general purpose engines. KMC and its affiliates employ nearly 3,100 people in the United States, with approximately 260 of them located at KMC’s Foothill Ranch, California headquarters.





2020 Kawasaki Ninja H2 Carbon Totalmotorcycle.com Features and Benefits


The Kawasaki  Ninja  H2 engine had to be  compact and produce high horsepower for intense acceleration. A supercharger was deemed necessary, but not just any existing supercharger would do. The collaborative effort across Kawasaki’s engineering divisions resulted in a highly- efficient supercharger that didn’t require an intercooler to reduce the temperature of the air being fed to the engine.

  • Engine designed to handle stresses 1.5-2 times greater than a naturally aspirated engine of the same size.
  • Crankshaft inertial moment was made as low as possible and combined with a lightweight flywheel for quick engine response. The relatively light rotational mass also contributes to quick handling characteristics.
  • Dual secondary balancers assure extremely low engine vibration.
  • Connecting rods balance strength and weight, and have a large big-end and bolt diameter for strength and durability in the high-output environment.
  • Cast pistons offer better strength over forged pistons for the very high temperatures generated by the engine. The unique casting process creates hollow areas to achieve idealized thickness with reduced weight.
  • A V-groove on the second piston ring land prevents top ring fluttering for reduced blow-by and oil consumption.
  • Two oil jets per cylinder help cool the pistons. One nozzle sprays the entire underside of the piston dome, while the other concentrates spray on the exhaust side of the dome bottom.
  • Large, deep-sump oil pan helps cool oil. Oil pan design ensures the oil pump is always surrounded by oil to prevent cavitation. Additionally, the unique angled shape and position of the oil strainer also helps prevent cavitation during strong acceleration and deceleration.
  • High-flow oil pump contributes to oil cooling and has a high flow rate to provide optimum lubrication to the engine and transmission.
  • Flat piston crown and combustion chamber design applied from Kawasaki’s Gas Turbine & Machinery Company to prevent knocking.
  • One-piece cylinder/upper crankcase utilizes dummy cylinder head during honing process for more precise cylinder dimensions, which allows use of low-tension piston rings to reduce mechanical loss and boost engine response.
  • Machine-formed combustion chamber helps achieve high power and helps prevent engine knock due to precisely controlled chamber volume.
  • The cylinder head has a water jacket between the exhaust ports of each cylinder, large cooling passages around the spark plug holes and valve seats, and a large coolant outlet for optimum cooling performance.
  • High-lift camshafts with wide valve overlap timing help increase performance.
  • Exhaust valves have heads made of Inconel, an extremely heat-resistant alloy, and heat-resistant tapered stems. Stainless steel is used for the intake valves.
  • Polished intake ports with idealized shape combined with straight exhaust ports that do not converge in head help boost power.


  • Kawasaki designed and built centrifugal type supercharger has a pumping capacity of more than 200 liters of air per second with intake air reaching speeds of up to 328 feet per second, at a maximum 2.4 times atmospheric pressure.
  • Planetary gear gets driving force from the crankshaft and spins a 69mm impeller, specially designed using Kawasaki Gas Turbine and Aerospace technology, up to nearly 130,000 rpm.
  • Since the supercharger design is highly efficient, compressed intake air is minimally heated so no intercooler is necessary.
  • Ram air intake duct feeds the supercharger fresh air in as straight a line as possible to help provide high output.
  • Aluminum intake chamber between supercharger and throttle bodies helps radiate heat to keep intake air cool. Stainless steel nets positioned over the intake funnels promote fuel misting from the secondary fuel injectors to further cool the intake charge and increase filling efficiency.
  • ECU-controlled blow-off valve regulates pressure gain in intake chamber when throttle is closed to prevent impeller surging and abnormal vibration.
  • 45mm stainless steel header pipes taper from eliptical-shape which match dual straight exhaust ports to round, and combine with the double walled, under-engine pre-chamber to reduce exhaust noise with a small volume.

Digital Fuel Injection

  • 50mm throttle valves operate with high precision to help provide smooth engine response. The system also enhances input to S-KTRC and accommodates the Kawasaki Launch  Control  and  Kawasaki Engine Brake Control features.
  • A high-pressure fuel pump is utilized to enhance high output from supercharger.

Kawasaki Quick Shifter (KQS)

  • Downshift function within the Kawasaki Quick Shift (KQS) system which allows clutchless downshifts when the throttle is fully closed.
  • Contact-less potentiometer-type quick shifter for quick upshifts that enable seamless acceleration.


  • Hydraulic clutch actuation achieved through Brembo radial pump master cylinder for smooth actuation and superb linearity.
  • Cassette-style transmission facilitates quick gearing changes.
  • Dog-ring transmission uses MotoGP technology in which the gears are fixed to the input transmission shafts and rings move to engage the gears on the output shaft. The result is lighter shifting, improved feel and quicker shifts.
  • Transmission oil jets at every gear mesh and shift fork position provide direct cooling and exceptional lubrication for high durability.

Assist & Slipper Clutch

  • Using the rotational forces of the clutch hub and pressure plate, the clutch is forced together during acceleration (Assist function) so that fewer and lighter clutch springs can be used for a lighter feel at the lever. During high back-torque, such as when too low of a gear is selected during downshifting, the Slipper function allows some clutch slippage to help prevent engine lock-up, stalling and rear wheel hop.
  • Judder spring component helps prevent judder when the clutch is disengaged.




  • Kawasaki’s cutting-edge electronics have always excelled on the track due to the highly sophisticated programming that gives the ECU an accurate, real-time picture of what the chassis is doing using minimal software. With a Bosch IMU and the latest evolution of Kawasaki’s proprietary dynamic modeling software, the Ninja H2’s electronic management technology is next level, changing from setting-type and reaction-type systems to feedback-type systems. This greater capacity helps assist riders experience the Ninja H2’s full potential, on the track.

Inertial Measurement Unit (IMU)(KP)

  • The IMU measures inertia along 5 axes: acceleration along longitudinal, transverse and vertical axes, roll rate, and pitch rate. The yaw rate is calculated by the ECU using Kawasaki’s patented software to provide six-axis chassis attitude input of lean angle and acceleration/deceleration force for more precise management of the electronic riding aids.
  • The IMU allows KTRC to incorporate more feedback to help maximize acceleration when exiting corners on the track.
  • Unlike competitors’ systems that have pre-set limits, Kawasaki’s proprietary race-developed software  enables the Ninja H2 to have a dynamic system that has a higher level of chassis awareness and adapts to changing track conditions such as rider inputs, vehicle attitude, and pavement conditions.

Kawasaki Cornering Management Function

  • Corner Management Function uses both KIBS and KTRC to assist racers trace their intended line through a corner on the track by suppressing the tendency for the bike to stand up while braking in a turn. The IMU helps the system maintain optimum hydraulic pressure based on the bike’s lean and pitch angles.

Kawasaki Launch Control Mode (KLCM)

  • Designed to assist the rider by optimizing acceleration from a stop, KLCM electronically controls engine output to help prevent wheelspin and thereby minimize front end lift when launching from a standstill.
  • Riders can choose from three modes, each offering a progressively greater level of intrusion. Each mode allows the rider to launch from a stop with maximum throttle operation.

Kawasaki Traction Control (KTRC)

  • Multi-level modes offer riders a greater number of settings to choose from, with each mode providing a different level of intrusion to suit riding conditions and rider preference, and all modes are designed to manage output when a sudden slip occurs. The system offers both enhanced sport riding performance and the peace of mind to negotiate slippery surfaces with confidence.
  • Riders can choose from nine modes, each offering a progressively greater level of intrusion, best suited for circuit, street or wet pavement riding conditions. Riders may also elect to turn the system off.
  • Modes 1 and 2 are tailored for circuit riding, while Mode 3 settings were optimized for more slippery conditions. Each mode has three sub-settings that allows fine tuning for specific riding conditions.
  • Using complex analysis, the system monitors traction conditions. By acting before slippage exceeds the range for optimum traction, drops in power can be minimized, resulting in ultra-smooth operation.




Kawasaki Engine Brake Control

  • The Kawasaki Engine Brake Control system allows riders to select the amount of engine braking they prefer.
  • When Kawasaki Engine Brake Control is activated (by selecting “LIGHT” in the settings), the effect of engine braking is reduced.

Smartphone Connectivity

  • A Bluetooth chip built into the instrument panel enables riders to connect to their motorcycle wirelessly. Using the smartphone application “RIDEOLOGY THE APP,” a number of instrument functions can be accessed, contributing to an enhanced motorcycling experience.
  • Vehicle Info: information such as fuel gauge, odometer, maintenance schedule, etc can be viewed via the smartphone.
  • Riding Log: route and rpm can be can be viewed via the smartphone.
  • Telephone notices: when a call, text or mail is received by the smartphone, this is indicated on the instrument display.
  • General Settings: general instrument display settings (such as preferred units, date, date format, etc) can be adjusted via the smartphone.
  • When riding (with the app ON), the bike and smartphone are always connected. Once the engine is turned off, or the phone is out of range of the instrument’s Bluetooth chip, the latest riding information is stored by the app and may be viewed on the phone. Any changes made via the app while the engine is off, or while out of range, will not be implemented until the ignition is turned on and the phone is within range with the app ON.



The chassis design had to have the strength to harness the great engine power while being able to handle external disturbances at track speeds. Additionally, a relatively short wheelbase was required to maintain sharp handling and performance. Finally, the chassis had to help dissipate the heat produced by such a high-output powerplant.

  • Trellis frame is made of high-tensile steel with pipe diameter, thickness and bend of each piece carefully selected to obtain the necessary stiffness for that part.
  • Ideal rigidity balance enables high-speed track riding while providing the ability to absorb external disturbances to facilitate stability.
  • Slim frame design and horizontal mounting of the die-cast aluminum rear sub-frame helps keep seat narrow and contributes to an easy reach to the ground for the rider’s legs.
  • Open design of trellis frame allows air to pass through it to help dissipate engine heat.
  • Swingarm mounting plate is bolted to the back of the engine to make it part of the frame. This eliminates frame cross members to help keep the frame light and enables the chain tension generated by the high-output engine to be efficiently transferred to the rigid engine block.


  • Uni-Trak® linkage rear suspension system provides progressive action to the rear shock so that small bumps are damped lightly and large bumps get heavy damping for a smoother ride and better steering and handling.
  • The H2 utilizes a single-sided swingarm. Composed of forged and pressed aluminum parts, it is highly rigid and light weight. It allows more room on the right side of the motorcylce for optimized exhaust shape.



Öhlins Shock

  • Equipped with an Ohlins TTX36 shock featuring a machined cylinder body, TTX GP-style damping adjusters and remote preload adjuster. The shock enhances cornering performance, is supple for riding comfort and sporty handling, contributes to a planted front end feel, and provides superb feedback from the road.
  • The patented shock features a unique concentric twin tube design and a solid main piston that only moves the oil in the shock cylinder. Damping generating components are all located at the top of the shock cylinder between the cylinder head and reservoir. The simple construction allows shock components to be lighter and more compact, ensures very consistent damping performance and prevents cavitation.
  • Since the shock construction makes it difficult for cavitation to occur, gas pressure is about half that of a standard shock so that lower tension seals can be used for reduced friction and smoother shock action.
  • Separate channels connect the compression and rebound valves to their corresponding side of the main piston, allowing completely separated adjusters for compression and rebound damping. This helps with suspension set-up since changing one damping setting will not affect the other.
  • Compression and rebound damping are each 22-way adjustable using the high-quality, machined finish TTX GP-style adjuster knobs that can be turned by hand or with an Allen key.
  • Remote hand-turn preload adjuster makes it easy to adjust settings without using tools.

Kayaba AOS-II Forks

  • Fully adjustable with compression and rebound damping and preload adjusters, all located on the fork caps for easy setting changes.
  • Kayaba AOS-II (Air-Oil Separate) 43mm fork features twin chambers to separate the damping oil from air for more stable damping performance. The fork provides smooth initial action and strong bottoming resistance at the end of the stroke.
  • DLC (Diamond-Like Carbon) coating on the inner tubes reduces stiction for improved fork response and helps prevent wear.


Electronic Steering Damper (ESD)

  • Steering damping characteristics are changed electronically. At low speeds, the settings were chosen so that damping does not interfere with the bike’s intrinsic lightweight handling. At higher speeds, damping increases to provide enhanced stability. Using input from the rear wheel speed sensor (provided via the engine ECU) the electronic steering damper’s ECU determines the vehicle’s speed as well as the degree the bike is accelerating or decelerating to provide just the right amount of damping.
  • When entering low-speed corners, steering is light and neutral. When making steering inputs to execute U-turns or changing lanes, handling is light and easy. Entering high-speed corners on the track, ideal damping levels that help riders to set the bike on the line of their choosing.
  • The enhanced feeling offered by the electronic steering damper helps reduce rider fatigue on long rides.
  • During strong acceleration or deceleration, damping is increased to provide enhanced performance.
  • Features Öhlins’ special twin-tube design that ensures stable damping performance even under racing conditions, and provides superb kickback absorption.
  • The damper’s high precision construction and use of an integrated clamp help minimize friction as the damper piston moves so that initial motion is very smooth.




Brembo®  Brakes with Kawasaki Intelligent anti-lock Brake System (KIBS)

  • Radial mounted 4-piston front brake calipers.
  • Front brakes feature Brembo Stylema monoblock calipers with four opposed 30mm pistons that clamp huge 330mm Brembo discs for superb braking force. The outer edges of the discs have grooves down the center of the outer edges to help dissipate heat.
  • Brembo radial pump master cylinder and reservoir are calibrated so that very little lever movement achieves strong front brake force.
  • Rear brake features Brembo caliper with two 32mm pistons that clamp a 250mm disc.
  • KIBS high-precision anti-lock brake system provides smooth feedback and minimal lever movement for added braking confidence.
  • The engine ECU communicates with the compact ABS ECU (which monitors wheel speed and front caliper hydraulic pressure) to provide highly precise brake pressure control. The high precision control means brake performance is not reduced due to excessive pressure drops and there is a more consistent lever feel instead of sharp lever pulses felt with conventional ABS systems.
  • Cast aluminum wheels are specifically designed to enhance handling and are shod with high- performance street tires.

Aerodynamic Bodywork

  • Functional design enhances stability and maximizes engine cooling performance.
  • Upper cowl incorporates a chin spoiler to help create downforce for added high-speed stability. Air scooped by the chin spoiler is deflected to the sides through special air passages to reduce drag.
  • Downforce is also created by the airflow over the mirror stays with Guerney Flaps on the trailing edges, designed by Kawasaki’s aerospace division.
  • Compact side cowls leave the engine almost entirely exposed and when combined with the trellis frame makes it easy for hot air to escape for better heat dissipation.
  • Stepped front fender design helps direct airflow to the radiator to help cooling.
  • River Mark emblem on the front of the cowling represents Kawasaki performance heritage and the combined efforts of the Kawasaki Akashi Group on this ultimate motorcycle.

Highly Durable Paint

  • Kawasaki’s Highly Durable paint has a special coat that allows minor scratches to self-repair to help the paint maintain its high-quality finish.
  • Soft and hard segments in the paint work together like a chemical spring, creating a trampoline effect that absorbs impacts.

In some cases, it takes about one week for the paint to recover.

The paint will not recover from scratches caused by a key, coins, zippers or snaps.


Accessory ERGO-FIT Handlebars

  • ERGO-FIT raised handlebar kit is available as an accessory and has a reduced downward angle, positioning the handle grips 20 mm higher than the standard clip-ons. For shorter riders or those who prefer a more upright riding position, the kit offers increased comfort.

TFT Color Instrumentation

  • High-grade full color multi-meter display features TFT (thin-film transistor) technology to ensure a level of visibility previously unattainable. The screen’s background color is selectable (black or white), and screen brightness adjusts automatically to suit available light.
  • Display functions include: odometer, dual trip meters, current mileage, average mileage, fuel consumption, bank angle display and bank angle recording function, coolant temperature, boost indicator, boost (intake air chamber) temperature, clock, Economical Riding Indicator, and IMU indicator.
  • In addition to these scrollable multi-function windows, four display modes offer a choice of how information is presented.

Type 1: Easy-to-read layout offers a substantial amount of information at a glance.

Type 2: Important information is prioritized and presented graphically: G-force (based on information from IMU), boost indicator and throttle application are illustrated graphically instead of numerically.

Type 3: Important information is prioritized and presented graphically: G-force (based on information from IMU), boost indicator and brake force application are illustrated graphically instead of numerically.

Type 4: Important information is prioritized and presented graphically: G-force (based on information from IMU) only is illustrated graphically instead of numerically.

  • Handlebar control switches put all mode selection and display options at the rider’s fingertips.


  • Riding position optimized for high-speed circuit riding. Compared to the Ninja® ZX™-10R, there is less forward lean, slightly wider handlebars and 10mm more forward-positioned footpegs.
  • Solo seat is tapered at the front to facilitate touching the ground and wider at the rear for rider support and comfort. Compact rear cowl has adjustable side hip supports to help brace the rider during intense acceleration.
  • Advanced, fully digital meter design and analog tachometer with rpm numbers that light up to chase the tachometer needle as it moves. All meter functions are controlled from the compact handlebar switches.






2020 Kawasaki Ninja H2 Carbon – Totalmotorcycle.com USA Specifications/Technical Details
US MSRP Price: $32,500 USD
Canada MSRP Price: $36,500 CDN
Europe/UK MSRP Price: £ GBP (On The Road inc 20% Vat)

Engine 4-stroke, 4-cylinder, DOHC, 4-valve, liquid-cooled, supercharged
Displacement 998cc
Bore x Stroke 76.0 x 55.0mm
Compression Ratio N/A
Fuel System DFI® (4) with dual injection
Ignition Digital
Transmission 6-speed, return, dog-ring
Final Drive Sealed chain
Electronic Rider Aids Kawasaki Cornering Management Function (KCMF), Kawasaki Traction Control (KTRC), Kawasaki Launch Control
Mode (KLCM), Kawasaki Intelligent anti-lock Brake System (KIBS), Kawasaki Engine Brake Control, Kawasaki
Quick Shifter (KQS) (upshift & downshift), Öhlins Electronic Steering Damper
Front Suspension / Wheel Travel 43mm inverted fork with adjustable rebound and compression damping, spring preload adjustability and top-out
springs/4.7 in
Rear Suspension / Wheel Travel Uni-Trak®, Öhlins TTX36 gas charged shock with piggyback reservoir, 22-way compression and rebound
damping and adjustability, and hand-turn spring preload adjustability and top-out spring/5.3 in
Front Tire 120/70 ZR17
Rear Tire 200/55 ZR17
Front Brakes Dual radial-mount, opposed 4-piston Brembo Stylema® calipers, dual semi-floating 330mm discs, KIBS ABS
Rear Brakes Opposed 2-piston calipers, single 250mm disc, KIBS ABS
Frame Type Trellis, high-tensile steel, with swingarm mounting plate
Rake/Trail 24.5°/4.1 in
Overall Length 82.1 in
Overall Width 30.3 in
Overall Height 44.3 in
Ground Clearance 5.1 in
Seat Height 32.5 in
Curb Weight 524.8 lb**
Fuel Capacity 4.5 gal
Wheelbase 57.3 in
Color Choices Mirror Coated Matte Spark Black / Candy Flat Blazed Green
Warranty 12 Month Limited Warranty
Kawasaki Protection Plus™ (optional) 12, 24, 36 or 48 months
**Curb weight includes all necessary materials and fluids to operate correctly, full tank of fuel (more than 90 percent capacity) and tool kit (if supplied). When equipped, California evaporative emissions equipment




2020 Kawasaki Ninja H2 Carbon – Totalmotorcycle.com  Canadian Specifications/Technical Details


Displacement 998cc
Type 4-stroke, In-Line Four
Bore and stroke 76.0 x 55.0 mm
Cooling Liquid
Compression ratio 8.5:1
Valve system DOHC, 16 valves (4 valves per cylinder)
Fuel system 50mm x4 with dual injection
Ignition Digital
Lubrication Forced lubrication (wet sump with oil cooler)
Intake System Kawasaki Supercharger


Front: type Dual semi-floating 330 mm Brembo discs
Front: calipers Dual radial-mount, Brembo Stylema monobloc
Rear: type Single 250 mm disc
Rear: calipers Opposed 2-piston


Overall length 2,085 mm
Overall width 770 mm
Overall height 1,125 mm
Wheelbase 1,450 mm
Ground clearance 130 mm
Seat height 825 mm
Curb mass** 238 kg
Fuel capacity 17 litres (3.7 gal.)


Transmission 6-speed, dog-ring
Final drive Chain
Primary reduction ratio 1.551 (76/49)
Gear ratio: 1st 3.188 (51/16)
Gear ratio: 2nd 2.526 (48/19)
Gear ratio: 3rd 2.045 (45/22)
Gear ratio: 4th 1.727 (38/22)
Gear ratio: 5th 1.524 (32/21)
Gear ratio: 6th 1.348 (31/23)
Final reduction ratio 2.444 (44/18)
Clutch Wet multi-disc, manual


Type Trellis, high-tensile steel, with Swingarm Mounting Plate
Wheel travel: front 120 mm (4.7 in.)
Tire: front 120/70ZR17M/C (58W)
Wheel travel: rear 135 mm
Tire: rear 200/55ZR17M/C (78W)
Caster (rake) 24.5º
Trail 103 mm
Steering angle (left/right) 27º/27º


Maximum Torque 141.7 N.m {14.4 kgf.m} / 11,000 rpm


Suspension, front 43 mm inverted fork with rebound and compression damping, spring preload adjustability and top-out springs
Suspension, rear New Uni-Trak, Öhlins TTX36 gas charged shock with piggyback reservoir, compression and rebound damping and spring preload adjustability, and top-out spring




2020 Kawasaki Ninja H2 Carbon – Totalmotorcycle.com European Specifications/Technical Details





Manufacturer Specifications and appearance are subject to change without prior notice on Total Motorcycle (TMW).

About Michael Le Pard 4910 Articles
"Mr. Totalmotorcycle". Owner and Founder of Total Motorcycle. Supporting over Motorcyclists and Motorcycling for 21 great years. Total Motorcycle is my pride and joy and being able to reach out 330 million people has been incredible but I could not have done it without the support of my visitors, readers and members, thank you so much! You are making a difference to millions of riders worldwide. Thank you.
