2005 Moto Guzzi Griso
Back to 2005 Moto Guzzi Motorcycle Index Page



Click photos to enlarge.
They make great desktop images.

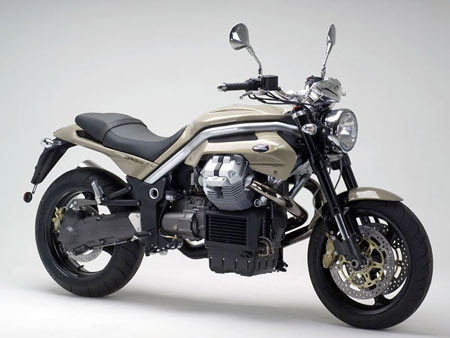

2005 Moto Guzzi Griso
2005 Moto Guzzi Griso

2005 Moto Guzzi Griso
2005 Moto Guzzi Griso

2005 Moto Guzzi Griso
2005 Moto Guzzi Griso

2005 Moto Guzzi Griso
2005 Moto Guzzi Griso

2005 Moto Guzzi Griso
2005 Moto Guzzi Griso



– 2005 Moto Guzzi Griso

Griso, freedom of mind

Powerful yet compact, ready to devour the road, the Griso has all the power of the character from Italian literature after whom it is named. Griso was the muscular bodyguard in the classical Italian novel “I Promessi Sposi” (The Betrothed), Alessandro Manzoni’s masterpiece set in the country around Mandello del Lario, on the Lecco side of Lake Como. The novel was written in the eighteenth century and set in the sixteenth century.

Introducing Griso, Alessandro Manzoni wrote, “Griso was the bravest of the brave, the master’s right hand man to whom all the most dangerous and difficult missions were entrusted, and totally faithful to the master, whether for gratitude or interest. This most valiant member of the family was also living proof of how much the master had achieved in the face of the powers of the land, and of how his own power had grown, not just in the eyes of the country folk but in reality as well.”


Description:

Technical description.
The impressive spars of the frame embrace the beautifully shaped tank in a high-tech hug that achieves a perfect balance between visual impact and functionality.

The exhaust collectors criss-cross in an aggressive display of chrome to highlight the unmistakable profile of the 90° V twin, now completely redesigned and equipped with electronic fuel injection. The engine powers the rear wheel through Moto Guzzi’s robust patented ‘CA.R.C.’ reactive drive shaft incorporated in the aluminium swingarm.

The chassis components further enhance the Griso’s striking beauty and thrilling ride. The robust 43 mm up-side down fork is adjustable in spring preload and in hydraulic compression and rebound damping.

Rising rate linkages coupled to a fully adjustable monoshock damp the rear wheel.

The elegant brakes are powerful too. The front wheel is equipped with two 320 mm floating stainless steel disks and callipers with four opposed pistons. The rear brake features a floating calliper with two parallel pistons. Historical imagery and the latest technology combine to breathe life into a motorcycle with uncompromising personality, designed with a freedom of mind that lets it match the needs and preferences of whoever rides it.

The Griso was born and grew up on typically Italian terrain, on the exhilarating bends of the lakeside roads and the hairpins of the mountains. The Griso has learned to master this terrain and to perform on it with consummate class. It has metabolised every curve, every angle of lean and every straight to guarantee riders the sort of sensitivity and reaction that define the very spirit of motorcycling.

The Griso is a café racer with attitude, a thoroughbred naked, an anti-conformist custom, and a radical muscle bike rolled into one. In short, it is a bike of many souls. The chance to discover them all is just one of the many sides of its irresistible fascination.

The engine: A new age for Guzzi’s 90° V twin.
One glance is enough to see that the Griso’s power unit is brand new. The alternator has changed place, and is now located between the two cylinders instead of in line with the crankshaft. The engine is a full 4 cm shorter and far more compact as a result. Also, because it is installed further forward and higher than before, the new engine contributes to distinctly superior overall balance and handling.

The car type alternator produces a generous 650 W of electrical power but only generates current when it is actually needed, thus limiting unnecessary power draw.

Reduced alternating mass.
Virtually every component in the engine has been redesigned or improved.
The crankcase is new; the con-rods are 10% lighter than before; even the ratio between con-rod length and piston stroke is higher to reduce alternating mass inertia and vibrations.

The piston too is shorter and lighter and the lighter rings are positioned differently. Even the skirt has a new design and two oil jets now ensure improved lubrication for the gudgeon pin. New metal cylinder head gaskets have replaced the old Klingerite versions for better thermal conduction and stud grip.


Ignition and aspiration
Twin spark ignition ensures superbly stable combustion with smoother power and less vibration. The result is a significant improvement in comfort and emission levels well within the limits imposed by the strict new Euro 3 standard.

The valve seats are sintered and no longer in cast iron, and the valves themselves are in stainless steel for extended life and improved thermal and wear resistance.

A stepper motor air valve, also derived from the automobile industry, guarantees easier starting from stationary and also keeps emissions down and engine speed stable. Pico injectors are installed in the intake manifolds as near as possible to the valves for more efficient combustion, more instantaneous response and reduced emissions.


Lubrication
Modifications to the crankcase, oil strainer and sump have greatly improved lubrication, particularly when the bike is leaned into bends and during fierce acceleration and braking.

The pressure relief valve has been moved from the end of the lubrication circuit to the middle, so that excess oil is released from the pump’s suction line, reducing power absorption and completely eliminating the phenomenon of foaming.
Engine gas flow has been radically improved and blow-by dramatically reduced.

Special attention has also been paid to making maintenance easier. The oil filter is now located the outside the engine for this very purpose.

Reactive drive shaft transmission Patented reliability.
The most significant technical innovation is reactive shaft drive, patented by Moto Guzzi under the name ‘CA.R.C.’ (‘CArdano Reattivo Compatto’ – Compact Reactive Shaft Drive). The new patented drive shaft is incorporated inside the aluminium alloy swingarm. The pinion gear and the drive shaft are free to oscillate inside the swingarm and the drive shaft is equipped with two universal joints with built-in torsional dampers for optimum transmission response.

The main benefit of this original and extremely compact drive system is the elimination of the counter-shaft effect typical of conventional shaft drives. Also, unlike alternative systems, Moto Guzzi’s patented reactive shaft drive enables a single piece swingarm to be used, improving rigidity. Finally, because the reaction shaft is not load-bearing, it is perfectly reliable in operation.

The new system ensures a consistently smooth ride without the jerks that conventional shaft drive systems inevitably generate when you open or close the throttle. The new system maintains all the other advantages of shaft drive including cleanliness, low noise levels and very low maintenance.



Specifications:

Engine: 90º V-Twin, 4 stroke
Cooling system: Air cooled
Displacement: 1064 cc
Bore and stroke: 92 mm x 80 mm
Compression ratio: 9.8:1
Valves & operation: 2 overhead valves with light alloy push-rods
Maximum power: 88 hp @ 8000 rpm
Maximum torque: 70 ft/lbs @ 5400 rpm
Fuel system: Weber-Marelli electronic injection with stepper motor
Starting system: Electric
Ignition: Electronic digital ignition. Twin spark
Exhaust system: Stainless steel exhaust system,
2 into 1, 3 way catalyst with Lambda sensor
Gear box: 6 speed
Lubrication: Wet sump, forced oil, cartridge filter
Clutch: Dry Front suspension: USD fork, 43 mm fully adjustable
Rear suspension: Single sided swing arm with fully adjustable mono shock
Front brakes : Two Brembo Gold Series stainless steel 320 mm floating discs with 4 diversified piston caliper
Rear brakes: Single Brembo Gold Series stainless steel 282 mm disc with 2 piston caliper
Wheels: Front: 3.5″ x 17″ Rear: 5.5″ x 17″
Tires: Front: 120/70 17″ Rear: 180/55 17″
Overall length: 88.6″ (2250 mm)
Width: 34.25″ (870 mm)
Seat Height: 31.10″ (790 mm)
Wheelbase: 61.41″ (1560 mm)
Dry weight: 504.85 lbs (229 Kg)
Fuel capacity: 4.5 gallons (17 liters)
Reserve: .8 gallons (3 liters)
Color: TBA
Availability: Summer 2006
MSRP: TBA
Technical specifications and colors are subject to change without notice.
